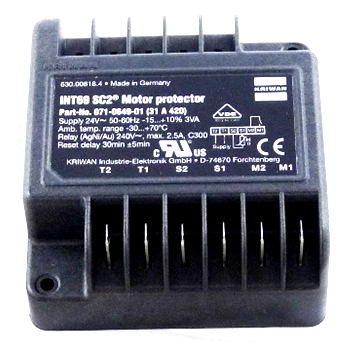

Copeland 998-0520-04 Module

The Copeland 998-0520-04 is a professional-grade 24V motor protector module designed to safeguard scroll and reciprocating compressors from catastrophic failure. Operating as a solid-state watchdog, this module monitors resistance from internal PTC thermistor sensors embedded in the motor windings. When the module detects high temperatures or electrical anomalies such as phase loss or unbalanced current, it interrupts the control circuit via the M1-M2 contactor coil circuit to prevent burnout. This 24V DC/AC compatible controller is a critical component for maintaining the integrity of commercial HVACR systems, providing real-time diagnostic capabilities and automatic reset functionality once safe operating parameters are restored. Engineered for reliability in demanding environments, the Copeland motor protection module ensures your compressor stays within its thermal envelope, reducing downtime caused by short cycling or fluctuating line voltages.

• Precision Thermal Monitoring: Uses PTC sensor resistance technology to detect winding overheating before permanent damage occurs.
• System Compatibility: Direct OEM replacement for various 13 to 15-ton Copeland Scroll and Discus compressors, ensuring seamless integration.
• Advanced Fault Detection: Protects against phase rotation issues, missing phases, and low voltage conditions that compromise motor life.
• Compact Field Retrofit: Designed for easy installation inside the compressor electrical box with a small form factor that fits standard mounting configurations.
• Visual Diagnostics: Often features LED status indicators to help technicians quickly identify flash codes and troubleshoot system trips.

How do I troubleshoot a 998-0520-04 module trip?
First, check for 24V power at the T1-T2 terminals. To determine if the module or the motor is at fault, measure the resistance of the internal thermistors; if resistance is extremely high, the motor is hot or the sensors are open. You can bypass the module for testing by jumping M1-M2, but do not leave this jumper in place for permanent operation.

Is this module interchangeable with 120V versions?
No. The Copeland 998-0520-04 is specifically rated for 24V applications. Utilizing a higher voltage source will result in immediate module failure. Always verify your control circuit voltage before wiring.

Does this module protect against phase loss?
Yes, this electronic protector monitors incoming power and will trip the control relay if it detects a missing phase or significant imbalance, preventing the motor from running and overheating under single-phase conditions.
