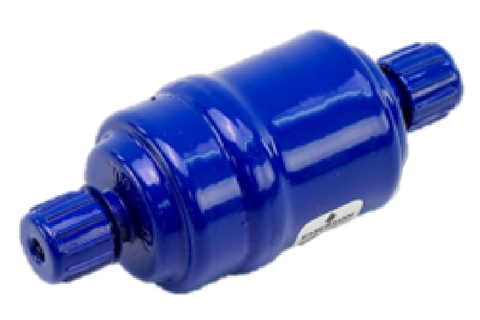

Copeland Comfort Control (Alco) 060014 Filter Drier

The Copeland Alco 060014 Filter Drier, also identified by model EK033S, is a high-performance liquid line filter drier designed for professional HVACR applications. Engineered with a 3 cubic inch desiccant volume, this unit provides exceptional moisture and acid removal to maintain system chemistry and prevent compressor hardware failure. It serves as a direct replacement for FD-033-S and is fully compatible with CFC, HCFC, and HFC refrigerants, including R-410A and R-22. The EK033S features a premium compacted bead core consisting of a 75% molecular sieve and 25% activated alumina blend, ensuring maximum filtration at a 20 micron rating. With a 680 PSI max working pressure and 3/8" ODF sweat connections, this rugged steel-shell drier is built to handle high-pressure environments while protecting the expansion valve from debris. The corrosion-resistant epoxy powder finish and solid copper fittings make it a reliable choice for field service technicians seeking Copeland approved POE oil compatibility.

• Optimal Contaminant Capture: The 20-micron outlet pad captures fine particulates to prevent capillary tube or TXV plugging.
• High Pressure Resilience: Rated for a 680 PSIG maximum working pressure, making it suitable for modern high-pressure R-410A systems.
• Superior Desiccant Blend: Uses a 75/25 molecular sieve and activated alumina mix for total system dehydration and acid neutralization.
• Technician-Friendly Install: Features 3/8" ODF (Sweat) solid copper connections for fast, reliable brazing in the field.
• Universal Compatibility: Approved for use with all common refrigerants and POE or mineral oils commonly found in residential and light commercial units.

• Is the EK033S compatible with R-410A refrigeration systems? Yes, its 680 PSI rating and POE oil approval make it a standard choice for R-410A liquid line protection.
• Which model does the 060014 replace? It is the direct replacement for the FD-033-S and can also substitute most 3 cubic inch 3/8" sweat driers.
• What is the flow direction in this filter drier? This is a uni-directional liquid line drier; ensure the arrow on the shell matches the direction of refrigerant flow.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
