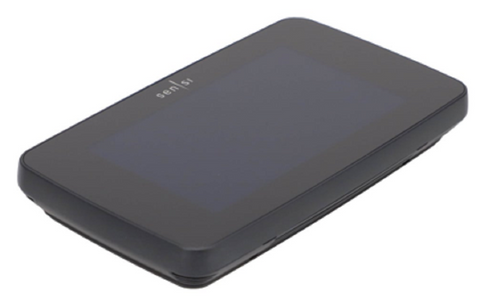

Copeland Comfort Control (White Rodgers) 1F96U-42WFB Thermostat

The White-Rodgers 1F96U-42WFB Sensi Touch 2 is a black smart Wi-Fi thermostat designed for residential and light-commercial HVAC systems.

This universal thermostat supports conventional single-stage 1H/1C, multi-stage systems up to 2H/2C, and heat pump systems up to 4H/2C. It uses 24 VAC hardwired power and requires a common wire (C-wire).

The 4.3-inch color touchscreen provides local system control, while 2.4 GHz Wi-Fi connectivity allows remote control through the Sensi app. Features include 7-day scheduling, geofencing, auto changeover, circulating fan control, humidity control, dual-fuel logic, smart alerts, and equipment service reminders.

The Sensi Touch 2 also supports compatible Sensi room and outdoor sensors and integrates with Amazon Alexa, Google Assistant, and Samsung SmartThings.

Key Benefits

• Manufacturer: Copeland Comfort Control / White-Rodgers
• Model: 1F96U-42WFB
• Series: Sensi Touch 2
• Color: Black
• Display: 4.3-Inch Color Touchscreen
• Power: Hardwired 24 VAC
• C-Wire: Required
• Wi-Fi: 2.4 GHz
• Single-Stage Systems: 1H/1C
• Conventional Systems: Up to 2H/2C
• Heat Pump Systems: Up to 4H/2C
• Programming: 7-Day, Geofencing, or Non-Programmable
• Supports compatible Sensi room and outdoor sensors
• Humidity control
• Dual-fuel heat pump control logic
• Automatic heat/cool changeover
• Circulating fan control
• Smart alerts and equipment service reminders
• Compatible with Amazon Alexa, Google Assistant, and Samsung SmartThings
• Terminal Rating: 1.5A per terminal, 2.5A maximum combined
• Terminals: RC, RH, C, W/E, W2/, Y, Y2/, O/B, G, ACC+, ACC-

Common Questions

Does the White-Rodgers 1F96U-42WFB require a C-wire?
Yes. The Sensi Touch 2 requires a common wire for 24 VAC power.

What HVAC systems does it support?
It supports single-stage systems, conventional systems up to 2H/2C, and heat pump systems up to 4H/2C.

Can I control it from my phone?
Yes. With a 2.4 GHz Wi-Fi connection, the thermostat can be remotely controlled through the Sensi app.

Does it work with remote temperature sensors?
Yes. The Sensi Touch 2 supports compatible Sensi room sensors and outdoor sensors.

Can it control humidity equipment?
Yes. It provides humidity-control capabilities and includes ACC+ and ACC- accessory terminals. Verify the connected equipment and wiring requirements before installation.

Does it work with every HVAC system?
No. It is not intended for line-voltage, millivolt, or proprietary communicating HVAC systems. Verify the HVAC system type, staging, voltage, wiring, and accessory requirements before ordering.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

1F96U-42WFB is the cross for TH9320WF5003
