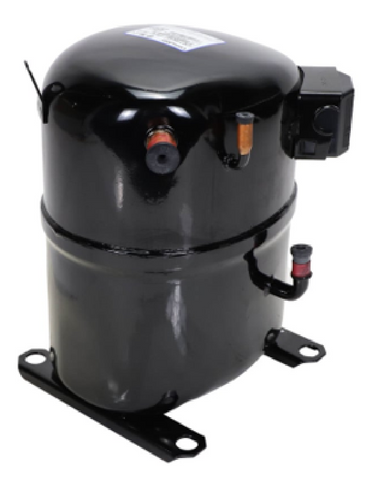

Copeland CR18K6E-PFV-925 Compressor
The Copeland CR18K6E-PFV-925 Reciprocating Compressor is a hermetic replacement compressor designed for compatible R-22 air conditioning and refrigeration systems. This Copeland 18,400 BTU compressor operates on 208/230V single-phase, 60 Hz electrical power and uses a reciprocating piston mechanism to compress refrigerant within the cooling system.
The Copeland CR18K6E replacement compressor features a 3/4-inch suction connection and a 1/2-inch discharge connection. Its hermetic construction incorporates the electric motor and compressor mechanism within a sealed assembly.
This 230V single-phase R-22 compressor is designed for equipment requiring the specified cooling capacity, electrical configuration, and refrigerant application. R-407C is also listed as an alternate refrigerant application, subject to Copeland's operating and lubricant requirements.
When replacing an existing Copeland hermetic reciprocating compressor, technicians should verify cooling capacity, voltage, phase, mounting configuration, suction and discharge connections, electrical characteristics, and refrigerant compatibility.
Installation should follow Copeland technical documentation and the original equipment manufacturer's specifications.
Key Benefits
-
Manufacturer: Copeland.
-
Part Number: CR18K6E-PFV-925.
-
Compressor Type: Hermetic reciprocating compressor.
-
Cooling Capacity: 18,400 BTU/h nominal under specified operating conditions.
-
Electrical Rating: 208/230V, single-phase, 60 Hz.
-
Refrigerant Application: R-22, with R-407C listed as an alternate application.
-
Suction Connection: 3/4-inch stub connection.
-
Discharge Connection: 1/2-inch stub connection.
-
Locked Rotor Amperage (LRA): 49 amps.
-
Net Weight: Approximately 61 lbs.
-
Hermetic Construction: Sealed motor-compressor assembly.
-
Reciprocating Compression: Piston-based refrigerant compression.
-
HVAC Replacement Application: Designed for compatible air conditioning and refrigeration equipment.
-
Model-Specific Compatibility: Requires verification of electrical, mechanical, and refrigerant specifications.
Common Questions
What are the specifications of the Copeland CR18K6E-PFV-925 compressor?
The Copeland CR18K6E-PFV-925 is a hermetic reciprocating compressor rated for 208/230V, single-phase, 60 Hz operation. It has a listed nominal cooling capacity of 18,400 BTU/h, a 3/4-inch suction connection, a 1/2-inch discharge connection, and a locked rotor current of 49 amps.
Can the Copeland CR18K6E-PFV-925 replace another 18,000 BTU compressor?
Yes, provided the replacement is approved for the equipment and matches the required cooling capacity, voltage, phase, refrigerant, mounting configuration, electrical characteristics, and suction/discharge connections. Similar cooling capacities alone do not establish compatibility.
Can the Copeland CR18K6E-PFV-925 compressor operate with R-407C refrigerant?
R-407C is listed as an alternate refrigerant application. Technicians must verify the approved operating conditions, lubricant requirements, electrical components, and system compatibility before installation or refrigerant conversion.
Disclaimer
While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
CR18K6E-PFV-925 is the cross for CR18K6E-PFV-875, P031-19210
