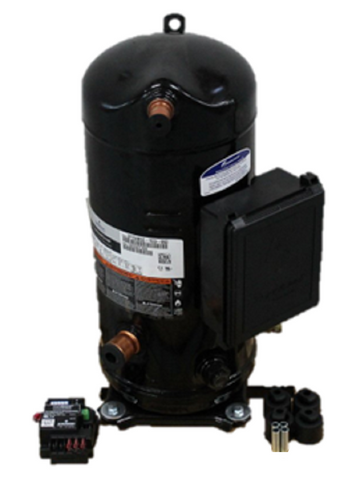

Copeland ZP154KCE-TED-950 Compressor

The Copeland ZP154KCE-TED-950 is a high-performance 13-ton scroll compressor engineered specifically for high-temperature commercial HVAC rooftop units and chillers. Operating on 460V 3-phase power and optimized for R-410A refrigerant, this unit offers a robust cooling capacity of 155,000 BTU/hr at standard 45°F evaporator conditions. This model serves as the direct technical replacement for ZP154KCE-TWD-426, ZP154KCE-TWD-455, and ZP154KCE-TED-426, ensuring seamless mechanical and electrical integration for field retrofits. As a commercial HVAC scroll compressor, it features a 1-3/8" ODF suction line and 7/8" ODF discharge connection for standard brazed copper installations. The internal terminal block configuration simplifies high-voltage wiring, while the factory-charged POE oil ensures immediate compatibility with polyolester-based synthetic lubricants required for modern R-410A systems. Designed for extreme reliability in industrial environments, this Copeland high-temp compressor maintains consistent compression ratios even under high ambient load conditions.

Key Benefits

• Direct Drop-In Compatibility: Specifically designed to replace legacy ZP154KCE industrial models (TWD-426, TWD-455, TED-426) without requiring piping modifications.
• Optimized Efficiency: High-temperature scroll technology provides superior liquid handling and thermal efficiency compared to reciprocating alternatives.
• Industrial-Grade Construction: Built to withstand the demands of 460V 3-phase HVAC systems, reducing mechanical vibration and operational noise.
• Ready for Installation: Pre-charged with high-quality POE oil to eliminate onsite lubrication matching errors.
• High Cooling Density: Delivers 155,000 BTU/hr capacity, making it the standard choice for 13-ton commercial air conditioning applications.

Common Questions

Is this compressor compatible with older R-22 systems?
No, the ZP154KCE-TED-950 is strictly designed for R-410A refrigerant and uses POE oil. It should not be used in systems where mineral oil or R-22 remains present.

What are the electrical requirements for this model?
This is a 460V 3-phase compressor. Verification of site voltage and phase rotation is essential before powering the unit to prevent motor damage.

Are the suction and discharge ports threaded or sweat?
These units feature ODF (Over Design Female) brazed connections, specifically 1-3/8" for suction and 7/8" for discharge, requiring standard brazing techniques for installation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
