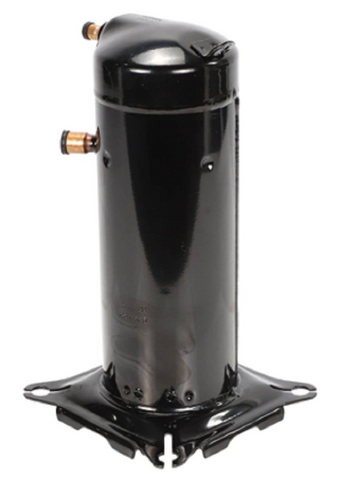

Copeland ZP31LXE-PFV-800 Compressor

The Copeland ZP31LXE-PFV-800 R-410A Scroll Compressor is a single-phase service compressor designed for residential and light-commercial air-conditioning applications.

The ZP31LXE-PFV platform is designed for R-410A refrigerant and operates on 208/230V, 60 Hz, single-phase power. This compressor uses Copeland scroll technology and POE lubricant.

Published application data lists approximately 29,000 BTU/h at specified rating conditions, with 3/4-inch suction and 1/2-inch discharge stub connections.

The ZP31LXE-PFV-800 is part of Copeland's LXE consolidated R-410A service compressor platform and is listed as a service replacement for several earlier ZP compressor models, including ZP29K5E-PFV-830, ZP28K5E-PFV-830, and ZP31K5E-PFV-800.

Before replacement, verify the original compressor model, refrigerant, voltage, phase, capacity, tubing connections, mounting configuration, and equipment manufacturer's approved compressor cross-reference.

Key Benefits

• Copeland R-410A scroll compressor
• Model ZP31LXE-PFV-800
• 208/230V, 60 Hz, single phase
• Approximately 29,000 BTU/h at specified rating conditions
• 3/4-inch suction connection
• 1/2-inch discharge connection
• Uses POE lubricant
• Part of Copeland's LXE consolidated service compressor platform
• Listed replacement for ZP29K5E-PFV-830, ZP28K5E-PFV-830, and ZP31K5E-PFV-800

Common Question

Can the Copeland ZP31LXE-PFV-800 replace my existing R-410A compressor?

It is listed as a service replacement for specified earlier Copeland ZP models, but compressor selection should not be based on capacity alone. Confirm the original compressor model, R-410A refrigerant, 208/230V single-phase electrical requirements, suction and discharge connections, mounting configuration, and equipment application before installation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

ZP31LXE-PFV-800 is the cross for 921426, ZP28K5E-PFV-800
