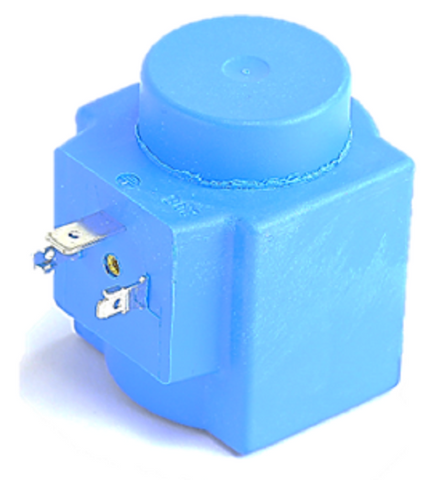

Danfoss 018F7363 Coil

The Danfoss 018F7363 is a high-performance Type BB solenoid coil designed specifically for demanding HVACR applications, including steam systems and industrial refrigeration. Operating at 230V AC with a 10W power rating, this BB230CS solenoid valve coil utilizes a DIN spade electrical connection (EN175301-803A) for secure, industrial-grade integration. Rated for continuous duty, its IP00 enclosure and Class H insulation allow it to function reliably in environments with extreme temperature fluctuations and high humidity. The clip-on fastening system enables rapid, tool-free installation onto Danfoss EVR series valves, ensuring a precise fit and optimal magnetic flux. Whether you are servicing an EVR 2 – 40 or an EVRA ammonia valve, this coil provides the necessary MOPD (Maximum Opening Differential Pressure) of up to 38 bar. This OEM Danfoss replacement part is the industry standard for contractors requiring durable solenoid coil 230V 50/60Hz components that maintain performance under high-heat steam conditions.

• Steam-Rated Performance: Engineered as a 230v10w SteamCoil to withstand the elevated thermal requirements of steam line applications.
• Universal Compatibility: Seamlessly fits the Danfoss EVR, EVRA, EVRAT, and EVRS valve programs, reducing the need for multiple stock items.
• Efficient Installation: Featuring the Danfoss clip-on system, the coil can be snapped onto the valve actuator manually, saving time during field service.
• Industrial Durability: Encapsulated coil design protects internal windings against moisture ingress and vibration in heavy-duty commercial environments.
• Optimized Power Draw: 10W consumption provides sufficient force for high pressure solenoid valve operation while maintaining energy efficiency.

Which valves are compatible with the Danfoss 018F7363?
This Type BB coil is compatible with Danfoss EVR 2 to EVR 40 (NC), EVR 6 to EVR 22 (NO), and EVRA/EVRAT valves. It is designed for 13.5 mm actuators.

Does this coil include the DIN plug?
The 018F7363 features DIN spade terminals. The cable plug or socket is typically sold separately to allow for specific wiring configurations.

Is this coil suitable for 50Hz and 60Hz systems?
Yes, this solenoid coil is rated for dual-frequency 50/60Hz operation at 220-230V AC, making it a versatile choice for various electrical grids.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
