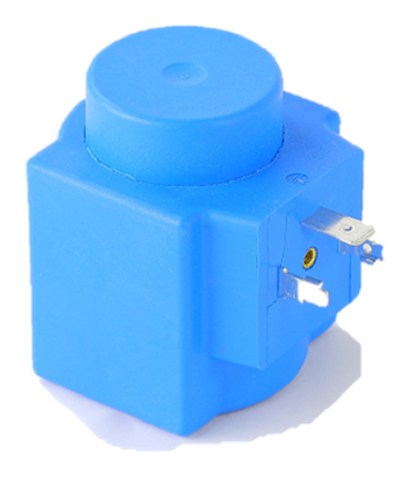

Danfoss 018F7655 Coil

The Danfoss 018F7655 is a high-duty 24V AC solenoid coil engineered for seamless integration with EV210B, EV220B, and EV250B valve series. As a BY024CS model, this coil is built for intensive industrial fluid control, featuring a DIN 43650 spade connection for secure electrical termination. Operating at 50/60 Hz, it draws 14 watts at 50Hz and 12 watts at 60Hz, providing the necessary torque for consistent valve actuation under varying pressure differentials. The Class H insulation ensures the internal windings withstand ambient transitions from -40°F to 122°F, while the IP00 enclosure rating makes it a standard choice for protected control panels. With UL listed and CE approval, this Danfoss solenoid coil replacement delivers the reliability required in high-cycle refrigeration and HVAC systems where downtime is not an option. Its clip-on fastening system allows for tool-free mounting, simplifying field maintenance for technicians.

• Universal Compatibility: Fits a broad range of Danfoss valves, including EV212B, EV222B, and EV251B, reducing the need for extensive truck stock.
• High Thermal Stability: Class H insulation (IEC 85) rated for peak temperatures, preventing premature coil burnout in hot mechanical rooms.
• Efficient Power Profile: Low 14W power consumption reduces heat dissipation and energy draw within the control circuit.
• Certified Reliability: Meets VDE 0580 standards and is cURus recognized, ensuring compliance with strict safety codes.
• Fast Installation: The clip-on design and 6.3 mm x 0.8 mm DIN spades allow for rapid swapping during service calls.

What is the primary electrical connection for the 018F7655?
This coil uses a standard DIN spade connection (3 spades) and typically requires a DIN plug or cable for a full IP-rated seal.

Can this coil be used in high-humidity environments?
Yes, it is rated for 0% to 97% RH (non-condensing), though the IP00 rating means it must be protected from direct water spray or splashing.

Which valve bodies is the 018F7655 compatible with?
It is specifically designed for the Danfoss B-series, ranging from the compact EV210B to the large-capacity EV220B (6-100).

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
