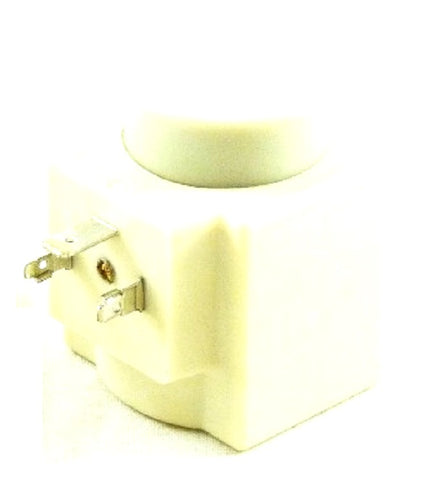

Danfoss 018F7658 Coil

The Danfoss 018F7658 is a high-performance solenoid valve coil designed for demanding industrial and light commercial HVACR applications. Engineered for 208-240V AC operation at 60Hz, this 14W coil (Type BJ) provides the necessary electromagnetic force to actuate Danfoss EV210B, EV220B, and EV250B valve bodies. Its DIN 43650-A connection ensures a secure, moisture-resistant electrical interface, critical for preventing terminal corrosion in high-humidity environments. This coil features Class H insulation, allowing it to withstand ambient temperatures up to 122°F while maintaining consistent magnetic flux. For contractors performing refrigeration valve repairs, the clip-on design allows for rapid installation or replacement without breaking into the system's pressure boundary, minimizing downtime and labor costs.

• Universal Compatibility: Optimized for use with a wide range of Danfoss EV series solenoid valves.
• IP65 Protection: When installed with a compatible DIN plug, the assembly is rated for washdown and harsh environments.
• High Thermal Stability: Class H insulation prevents winding failure during continuous duty cycles.
• Efficient Power Consumption: 14W rated power provides reliable lift capacity while reducing energy draw.

What is the difference between Danfoss Type BJ and Type BX coils?
The Type BJ (this model) utilizes a DIN connection for field-wired applications, whereas Type BX models typically feature integrated junction boxes. Both are compatible with the same valve series.

Can I use this 240V coil on a 120V system?
No, using a 240V solenoid coil on a 120V circuit will result in insufficient magnetic force to lift the plunger, causing the valve to fail to open under pressure.

Do I need to depressurize the system to change the coil?
No, the Danfoss 018F7658 is a snap-on coil that can be replaced while the system is under pressure, provided the electrical power is locked out.
