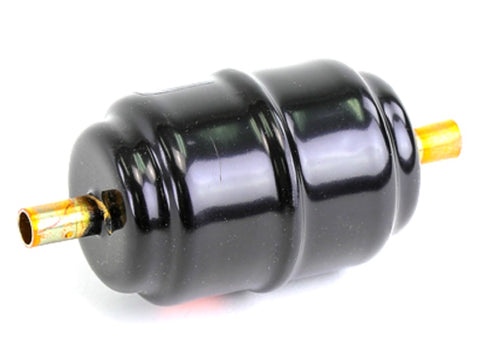

Danfoss 023Z5013 Filter Drier

The Danfoss 023Z5013 (DCL 032S) is a high-performance 1/4" sweat liquid line filter drier engineered for critical moisture and acid management in professional refrigeration and air conditioning systems. Part of the Eliminator series, this solid core drier features an optimized composite of 80% molecular sieve and 20% activated alumina, making it the industry standard for systems utilizing HFC and HCFC refrigerants like R-410A, R-404A, and R-134a. The ODF solder connection ensures a leak-proof, hermetic seal essential for maintaining high-pressure integrity up to 667 psig. With a 3 cubic inch capacity, the 023Z5013 is specifically designed for liquid line protection, filtering particles down to 25 microns to prevent expansion valve clogging and compressor damage. This HVAC filter drier 1/4 inch model provides a high degree of desiccant surface area, ensuring maximum dehydration and system longevity in both residential and light commercial applications.

• Dual-Action Core: Combines 80% molecular sieve for moisture removal with 20% activated alumina for superior acid adsorption.
• High Flow Capacity: Minimized pressure drop across the 3 cubic inch core preserves system efficiency and cooling capacity.
• Corrosion Resistance: Durable steel housing with a powder-coated finish designed to withstand harsh mechanical and environmental stress.
• Precision Filtration: Integrated 25-micron filter pad traps solid contaminants, protecting sensitive thermal expansion valves (TXVs).
• Universal Compatibility: Fully compatible with mineral, AB, and POE lubricants and a wide range of refrigerants including R22, R407C, and R507.

• What is the difference between DML and DCL series? DML driers use a 100% molecular sieve for maximum moisture removal, while this DCL (023Z5013) model contains activated alumina to neutralize acids often found in systems with compressor burnouts or older lubricants.
• Can this be installed in any orientation? While it can be installed in various positions, it must be installed with the flow arrow pointing toward the expansion device for proper filtration.
• Is this suitable for a 1/4" flare system? No, the 023Z5013 features ODF sweat connections for soldering; a flare version requires a different Danfoss part number.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
