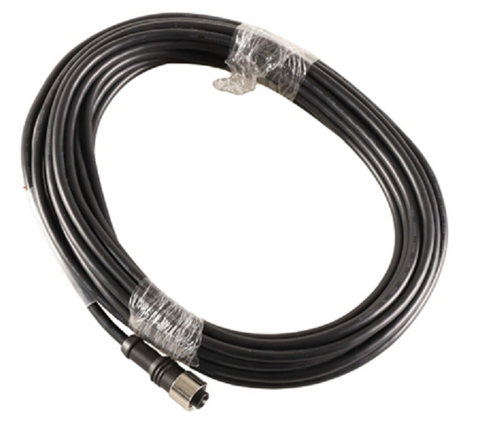

Danfoss 034G2200 Cable

The Danfoss 034G2200 is a high-performance actuator cable engineered specifically for technical compatibility with ETS Colibri electronic expansion valves. Featuring an 8-meter (26.2 ft) length, this cable provides the necessary reach for complex commercial refrigeration layouts and large-scale HVACR evaporator setups. The assembly utilizes an M12 connection protocol, ensuring a secure, moisture-resistant interface that maintains signal integrity in high-vibration environments. Designed for precise stepper motor control, it facilitates the accurate modulation required for superheat control and optimal refrigerant flow. This Danfoss ETS cable is built with high-grade insulation to withstand the thermal cycling typical of mechanical rooms and industrial cooling applications. For contractors performing EEV troubleshooting or new system commissioning, utilizing OEM-spec cabling is critical to prevent communication errors between the EKC controller and the valve actuator.

• Extended 8-meter length allows for flexible routing through conduit and around structural obstacles without requiring field splices.
• Internal wire gauge is optimized to minimize voltage drop over the 26.2-foot run, ensuring consistent torque for the valve motor.
• Factory-molded M12 connector provides an IP-rated seal against condensation and environmental contaminants common in HVACR service.
• Shielded construction reduces electromagnetic interference (EMI) from nearby variable frequency drives or high-voltage lines.
• Color-coded conductors simplify terminal block wiring for faster installation and more accurate diagnostic testing.

Is the 034G2200 compatible with all ETS valves?
This specific cable is designed for the Danfoss ETS Colibri (ETS 12C through ETS 100C) series using the M12 connection standard. Verify your valve's plug configuration before installation.

Can this cable be trimmed to a shorter length?
While the cable can be shortened, the factory-terminated M12 end must remain intact to ensure a proper seal at the valve actuator. Always use high-quality crimp terminals when landing the bare-wire ends at the controller.

What is the temperature rating for the cable jacket?
The cable is rated for standard refrigeration environments; however, ensure the routing avoids direct contact with high-temperature discharge lines or sharp edges that could compromise the outer insulation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
