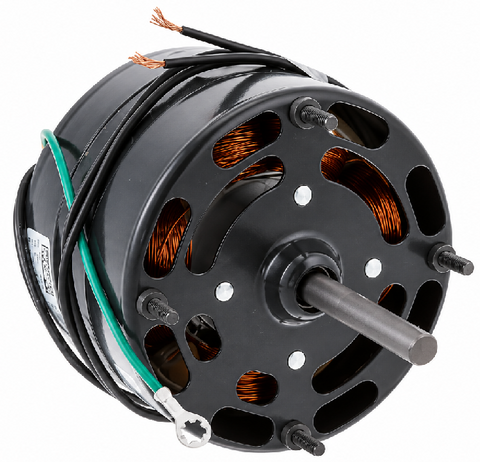

Fasco D116 Motor

The Regal Rexnord Fasco D116 Electric Motor is a 1/15 HP, 115V, single-phase replacement motor designed for compatible fan and blower applications. Featuring a 1500 RPM rated speed and clockwise shaft-end rotation (CWSE), this Fasco shaded-pole motor provides dependable operation in HVAC and ventilation equipment requiring matching electrical and mechanical specifications.

This Fasco D116 replacement motor features a 4.4-inch body diameter, sleeve bearings, stud mounting, and a 3/8-inch diameter shaft. Its shaded-pole design eliminates the need for a separate capacitor, making it suitable for applications requiring a compact, single-speed motor.

For proper replacement, verify the original motor's horsepower, voltage, RPM, rotation, shaft dimensions, mounting configuration, and electrical requirements. The correct motor selection is essential for maintaining airflow and equipment performance. Installation should be performed by a qualified HVAC technician following the manufacturer's specifications.

Key Benefits

• Manufacturer: Regal Rexnord – Fasco

• Part Number: D116

• Horsepower: 1/15 HP

• Voltage: 115V

• Phase: Single-phase

• Speed: 1500 RPM

• Rotation: Clockwise, viewed from shaft end (CWSE)

• Motor Type: Shaded pole

• Speeds: Single-speed

• Motor Diameter: 4.4 inches

• Shaft Diameter: 3/8 inch

• Shaft Length: 2-3/8 inches

• Full-Load Current: 2.4 amps

• Bearings: Sleeve

• Mounting: Stud mount

• Enclosure: Open air-over

• Capacitor: Not required

• Application: Compatible HVAC fans, blowers, and ventilation equipment

Common Questions

Q: What is the Fasco D116 motor used for?

A: The Fasco D116 is designed for compatible fan and blower applications requiring a 1/15 HP, 115V shaded-pole motor with clockwise rotation.

Q: Does the Fasco D116 require a capacitor?

A: No. Its shaded-pole motor design does not require a separate start or run capacitor.

Q: What direction does the Fasco D116 rotate?

A: The motor rotates clockwise when viewed from the shaft end (CWSE). Verify the required rotation direction before installation.

Q: Can the Fasco D116 replace another 1/15 HP motor?

A: Possibly. The replacement motor must match the original equipment's voltage, speed, rotation, shaft dimensions, mounting arrangement, and electrical requirements.

Q: Is the Fasco D116 suitable for HVAC blower applications?

A: Yes, when the equipment is designed for a motor with the D116's electrical ratings, physical dimensions, and operating characteristics.

Disclaimer

While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

D116 is the cross for 44A
