Fasco D208 Motor

This item is not eligible for free shipping.

115V 1/30HP 3000RPM MOTOR

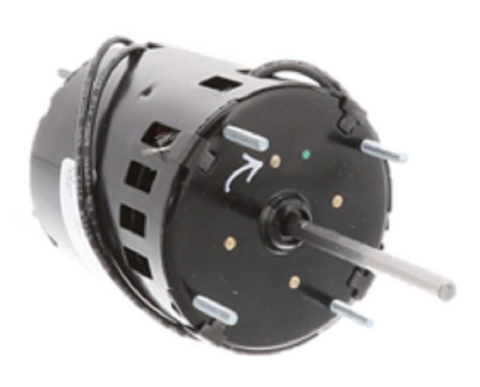

Fasco D208 Motor – 115V 1/30HP 3000RPM

The Fasco D208 Motor by Regal Rexnord is a high-quality, general-purpose motor designed to deliver reliable performance for a wide range of industrial and commercial applications. Engineered with precision and built to last, this motor is ideal for powering fans, blowers, pumps, and other light-duty equipment.

Key Features:

• Power & Performance: 1/30 HP, 115V, 3000 RPM motor designed for efficiency and long-lasting operation.

• Durable Construction: 3.3" diameter with shaded pole design and thermally protected for safety.

• Versatile Enclosure Options: End-Frame configurations include enclosed shaft end, open lead end, and semi-enclosed shell for flexible installation.

• High-Quality Components: Class B insulation, sleeve bearing, and 1/4" diameter shaft with flat for secure coupling.

• Extended Leads & Studs: 12" leads and extended studs at both shaft ends simplify wiring and mounting.

• Optimal Operating Conditions: Rated for 40°C ambient temperature and air-over duty for reliable cooling.

Product Specifications:

• Phase: Single

• Output: 1/30 HP (0.02 kW)

• Voltage: 115V

• Speed: 3000 RPM

• Service Factor: 1

• Enclosure: Open, Air Over

• Thermal Protection: Thermally Protected

• Insulation Class: B

• Frequency: 60 Hz

• Current: 1.1 A

• Number of Speeds: 1

Resources & Support:

• Outline & CAD Templates: 71211695

• 3D CAD Files & DataPack: Available for download

• Expert Support: Connect with our sales professionals to find out how Fasco motors can efficiently power your equipment.

Reliable, efficient, and easy to install, the Fasco D208 Motor is the perfect choice for businesses seeking dependable motor solutions.
