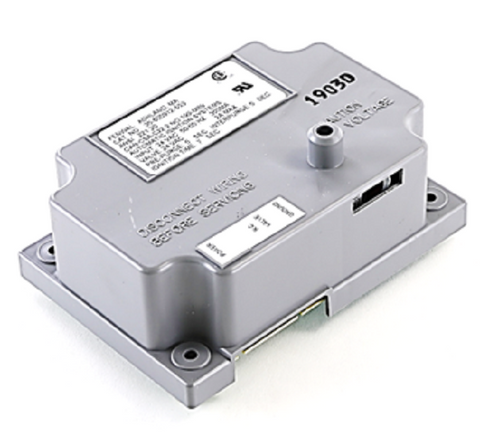

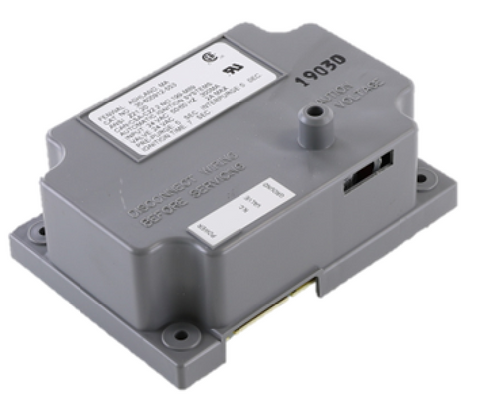

Fenwal 35-605912-553 Module

The Fenwal 35-605912-553 is a 24V Direct Spark Ignition (DSI) control module specifically engineered for high-demand gas-fired systems. Known as the Triton Module (PMI Special), this unit utilizes advanced microprocessor technology to manage the ignition sequence, providing precise timing for purge and inter-purge cycles. For contractors troubleshooting in the field, the integrated DETECT-A-FLAME® flame sensing technology and diagnostic LED allow for rapid identification of system faults. This module is built to withstand extreme environments, maintaining operational integrity in temperatures ranging from -40°F to +176°F. Whether you are servicing commercial boilers, unit heaters, or infrared heating systems, the 35-605912-553 provides the technical versatility required for natural gas, propane, or manufactured gas applications.

Key Benefits for Professional Contractors

• Enhanced Reliability: Microprocessor-controlled logic ensures repeatable performance and precise ignition timing.
• Advanced Troubleshooting: Features dedicated flame current test points and a multi-color diagnostic LED to reduce time on site.
• Flexible Installation: Supports both local and remote flame sensing configurations to accommodate diverse equipment designs.
• Industrial Durability: Robust construction designed for hazardous and high-temperature environments.
• Fail-Safe Operation: Includes automatic reset functionality and a normally closed alarm output for integrated safety monitoring.

Common Technical Questions

Is the Fenwal 35-605912-553 compatible with propane systems?
Yes, this ignition control is rated for use with natural gas, LP (propane), and manufactured gas sources.

How do I check the strength of the flame signal?
Technicians can measure the signal directly at the flame current test points using a standard microammeter to ensure the sensor is meeting the minimum required signal strength.

Can this replace a multi-trial ignition module?
This specific PMI Special module is designed for 24VAC input and supports single or three trials for ignition depending on the internal configuration; always verify the pre-purge and trial-for-ignition (TFI) timings of the original part before replacement.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
