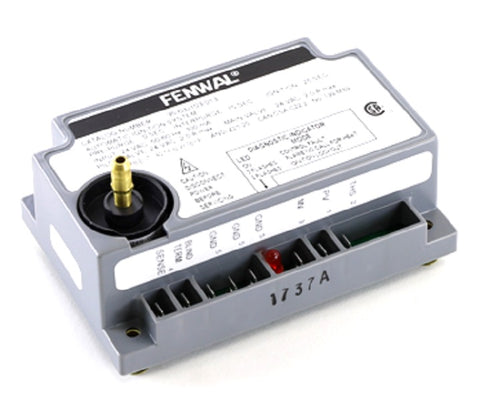

Fenwal 35-63J103-013 Control

The Fenwal 35-63J103-013 is a microprocessor-based 24 VAC intermittent pilot ignition control engineered for precision performance in gas-fired heating systems. This "J" Series module serves as a robust Johnson Controls replacement, specifically designed to drop into applications previously utilizing the discontinued Johnson G77x series. It maintains the exact footprint, mounting hole pattern, and terminal layout of the original JCI hardware, ensuring a seamless field conversion without the need for mechanical or wiring modifications.

Operating with 0 seconds of pre-purge and a 25-second trial for ignition (TFI), this control delivers reliable spark-to-pilot ignition sequences. It features full-time flame sensing and a safe-start routine that monitors for false flame signals during the startup cycle. The on-board diagnostic LED provides technicians with immediate fault code feedback, significantly reducing troubleshooting time on rooftops or in mechanical rooms. Built for industrial-grade durability, it handles ambient temperatures from -40°F to 176°F, making it suitable for commercial cooking equipment, unit heaters, and gas furnaces.

Key Benefits for Contractors:

• Direct Fit: Matches the JCI G77x series wiring and mounting, allowing for rapid replacement in the field.
• Advanced Diagnostics: Multi-color LED provides clear communication of system status and lockout codes.
• Versatile Compatibility: Certified for use with natural gas, LP, and manufactured gases in various 24V HVAC systems.
• Enhanced Safety: Employs microprocessor logic for repeatable timing and immediate safety shutdown upon flame failure.
• Flexible Sensing: Supports both local (internal) and remote flame sensing configurations to match original equipment specs.

Common Questions & Troubleshooting:

1. Does this module require a separate ground for flame sensing?
The 35-63J includes three dedicated ground terminals to ensure a stable flame current return path, which is critical for preventing nuisance lockouts on high-efficiency burners.

2. Can I use this for a direct spark ignition (DSI) setup?
No. This specific model is designed for intermittent pilot (spark-to-pilot) systems. Attempting to use this for DSI will result in improper sequence timing and safety hazards.

3. What should I check if the LED indicates a flame failure?
Verify the flame sensor is positioned within the pilot flame envelope and check for at least 0.7 microamps of DC flame current at the test pins using a high-quality multimeter.
