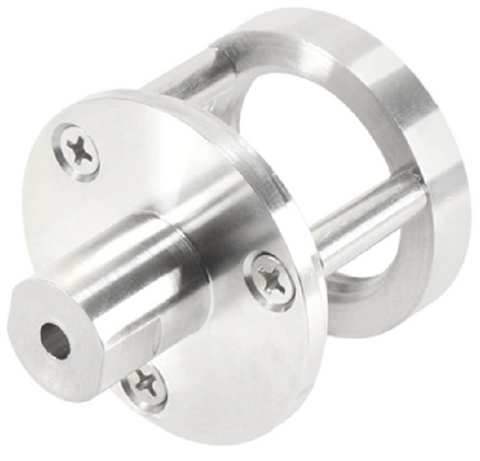

Fireye DE601-16 Optic Termination Assembly

The Fireye DE601-16 Optic Termination Assembly is a critical infrastructure component engineered for high-temperature flame scanner installations. This stainless steel fiber optic termination provides a secure mechanical and optical interface between Fireye 65UV5 or 95UV5 integrated scanners and the fiber optic bundle. Designed to withstand the rigorous thermal stresses of a burner front, the DE601-16 ensures signal integrity by maintaining precise alignment of the optical glass fibers. In industrial boiler flame detection applications, this assembly facilitates the transmission of UV or IR spectral data to the flame safeguard system, allowing for accurate burner management system (BMS) monitoring. The robust 16-inch configuration allows for flexible mounting in recessed or obstructed burner housings where line-of-sight monitoring is restricted. Using industrial burner spare parts like the Fireye DE601 series ensures full compatibility with Simplicity and InSight scanners, preventing signal attenuation and nuisance shutdowns in multi-burner environments.

Key Performance Benefits

• High-Temperature Durability: Constructed from 300-series stainless steel to resist corrosion and thermal deformation at the burner face.
• Precision Optical Alignment: Engineered to provide a low-loss transition for ultraviolet and infrared signals to the scanner head.
• Application Versatility: Optimized for use with inner and outer fiber optic bundles in complex boiler control system configurations.
• Mechanical Integrity: Features heavy-duty threading to maintain a dust-tight seal, protecting sensitive optical fibers from combustion byproducts.

Common Technical Questions

Is the DE601-16 compatible with all Fireye InSight scanners?
Yes, this assembly is specifically designed to interface with the fiber optic variants of the Fireye InSight and InSight II series scanners, provided the correct bundle adapter is utilized.

How do I ensure maximum signal strength during installation?
Verify that the fiber optic cable ends are polished and free of debris before threading into the DE601-16. Even minor misalignment or contaminants can cause significant signal attenuation in flame detection loops.

Can this assembly be used in hazardous area locations?
The Fireye DE601-16 is a mechanical termination; its suitability for hazardous areas is dependent on the rating of the flame scanner housing and the overall BMS installation requirements.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
