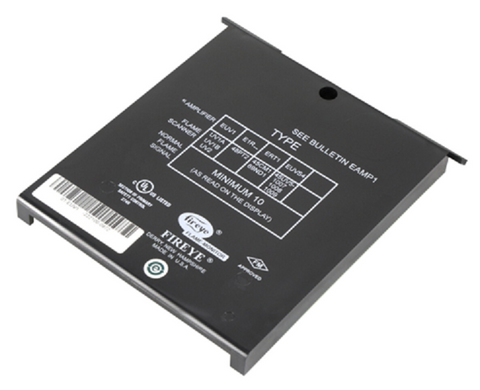

Fireye EUV1 Amplifier

The Fireye EUV1 is a standard ultraviolet flame amplifier engineered specifically for integration with the Flame-Monitor E100 and EB700 chassis burner management systems. As a veteran-grade component for industrial combustion safety, this module provides high-sensitivity signal processing for non-self-checking UV systems. It is designed for intermittent burner operation where the system cycles at least once every 24 hours to allow for essential safety circuit verification. The EUV1 amplifier facilitates seamless communication between the flame scanner and the primary control, supporting remote diagnostics and safety lockout annunciation through compatible ED510 display modules. Built to withstand rugged mechanical room environments, it maintains consistent performance across a wide temperature range of -40??F to 140??F. This amplifier is a critical drop-in replacement for maintaining UL-listed and FM-approved flame safeguard sequences in oil, gas, and combination fuel applications.

• Broad Compatibility: Engineered to work seamlessly with Fireye UV1A, UV2, UV8A, UV90, and 45UV3 ultraviolet scanners.
• Enhanced Diagnostics: Integrated test jacks allow technicians to verify flame signal strength using a standard multi-meter during commissioning or troubleshooting.
• Reliable Signal Processing: Optimized for 120 VAC supply to ensure stable flame detection even in high-demand industrial environments.
• Simplified Maintenance: Part of a modular system that allows for quick plug-in installation without requiring a complete control system rewire.

Is the EUV1 suitable for continuous 24-hour firing applications?
No. The EUV1 is a non-self-checking amplifier. For burners that operate continuously without cycling, a self-checking module like the EUVS4 and specialized scanners are required to meet safety standards.

Which control systems can use this amplifier?
This module is primarily designed for the Fireye Flame-Monitor E100 series and is installed directly into the EB700 chassis.

How do I verify the flame signal with this module?
You can measure the DC voltage at the amplifier test jacks; a steady signal indicates proper scanner alignment and adequate ultraviolet sensing.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
