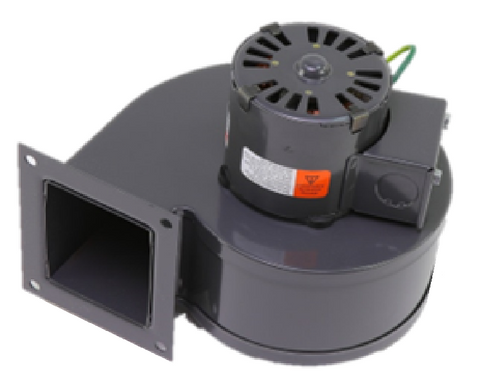

Fulton Boiler 2-30-000445 Purge Fan

The Fulton Boiler 2-30-000445 Purge Fan is a critical OEM replacement part engineered for high-static pressure requirements in industrial and commercial steam applications. This 115V boiler blower motor operates at 2200 RPM with a 1/40 HP rating, providing the necessary torque to clear combustion chambers of residual gases. Designed specifically for the pre-ignition and post-purge cycles of Fulton vertical tubeless boilers, this fan ensures that the burner sequence initiates under safe atmospheric conditions, preventing nuisance flame failures and fuel-rich starts.

For technicians servicing HVACR systems, utilizing this genuine Fulton 2-30-000445 ensures exact mechanical alignment and electrical compatibility. The motor's duty cycle is optimized for intermittent operation, maintaining combustion safety and system efficiency while reducing mechanical wear during the high-demand startup phase. Replacing a failing pre-purge fan with this Fulton boiler component restores the manufacturer’s original airflow specifications, which is vital for maintaining UL/ASME compliance on the boiler skid.

Key Benefits for Contractors

• Direct OEM Fit: Eliminates the need for mounting bracket modifications or wiring harness adaptations during field replacement.
• High-Velocity Purge: The 2200 RPM motor provides consistent CFM to meet rigorous safety timing requirements in the burner control sequence.
• Optimized Power Draw: The 115V, 1/40 HP motor interacts seamlessly with existing fan relays and flame safeguard controllers.
• Industrial Build Quality: Constructed to withstand the ambient heat and continuous cycling common in commercial boiler rooms.
• Safety Reliability: Ensures proper air-to-fuel ratios are achieved by clearing the heat exchanger of unburned combustibles.

Common Questions

What are the symptoms of a failing 2-30-000445 purge fan?
Technicians typically observe a "Purge Fail" or "Airflow Switch Not Closed" error on the burner management system, often caused by the fan failing to reach 2200 RPM or failing to move enough air to trip the safety switch.

Is this fan compatible with all Fulton vertical boilers?
While used across many Fulton ICX and VMP models, always verify the specific part number in your technical manual, as blower wheel diameters and motor ratings vary by BTU capacity.

Can I use a universal 1/40 HP motor instead?
Universal motors often lack the specific RPM and shaft configuration required for the Fulton centrifugal blower housing, which can lead to insufficient purge volumes and safety lockouts.
