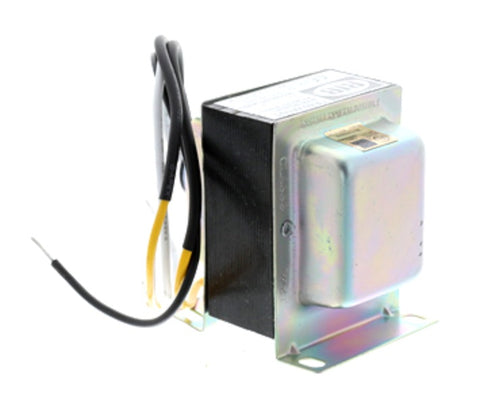

Functional Devices-RIB TR40VA001 Transformer

The Functional Devices RIB TR40VA001 is a professional-grade 40VA control transformer engineered for high-reliability applications in building automation, HVACR, and temperature control systems. As a veteran-preferred 120V to 24V step-down transformer, this unit features a split-bobbin construction to ensure superior isolation and consistent voltage regulation. Designed with inherently limited overcurrent protection, it effectively safeguards secondary circuits without the need for external fusing in Class 2 installations. For versatile field mounting, it includes a single threaded 1/2-inch NPT hub and a heavy-duty foot mount, allowing for secure attachment to junction boxes or equipment panels. The 8-inch color-coded pigtail leads with a 0.5-inch strip facilitate rapid, error-free wiring by service technicians. With a robust UL 5085-3 listing and a 100,000-hour MTBF at 77°F, this Class 2 transformer is the industry standard for powering 24VAC relays, sensors, and digital I/O circuits in demanding environments.

• Dual Mounting Options: Features both foot and single 1/2-inch NPT threaded hub mounts for flexible installation in various enclosures.
• Enhanced Safety: Inherently limited protection prevents damage from secondary shorts, meeting strict Class 2 safety standards.
• Reliable Construction: Split-bobbin design reduces electrical noise and improves thermal performance across an operating range of -30°F to 140°F.
• Contractor Ready: Pre-stripped 8-inch pigtail leads save time on the job site and ensure dependable electrical connections.
• Broad Compatibility: Ideal for 120Vac primary voltage applications requiring a stable 24Vac secondary voltage for control logic.

Is this transformer suitable for powering smart thermostats?
Yes, with a 40VA power rating, it provides ample current for most modern smart thermostats and additional HVAC controls, provided the total load does not exceed 1.67 Amps.

What does 'inherently limited' mean for my installation?
It means the transformer's internal impedance limits the output current during an overload or short circuit, protecting the unit and circuit without requiring an external circuit breaker.

Can I mount this directly to a 4x4 junction box?
Absolutely. The single threaded hub is designed to fit standard 1/2-inch knockouts, allowing for a clean, secure mount directly to the exterior of an electrical box.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
