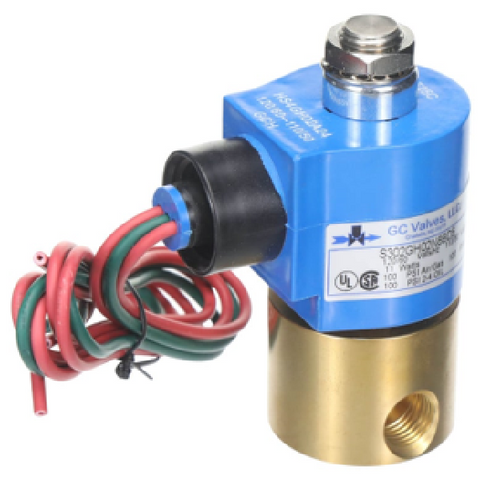

GC Valves S302GH02N8BD5 Solenoid Valve

The GC Valves S302GH02N8BD5 Solenoid Valve is a direct-acting, 2-way normally open valve designed for controlled flow of air, water, light oil, neutral gases, and other compatible media. This S30-series valve features a 1/4-inch NPT brass body, 1/8-inch orifice, and a 110/120V AC Class H coil. The valve is rated for an operating pressure differential of 0–100 PSI for applicable air, gas, liquid, and light-oil service.

The S302GH02N8BD5 normally open solenoid valve remains open when the coil is de-energized and closes when the coil is energized. It uses nitrile sealing material, a brass body, and a 1/2-inch conduit NEMA 4X housing. Before replacement, verify the complete valve number, voltage, pipe size, pressure range, controlled media, seal compatibility, and electrical connection.

Key Benefits

• Manufacturer: GC Valves
• Part Number: S302GH02N8BD5
• Valve Series: S30
• Valve Type: Direct Acting
• Function: 2-Way Normally Open
• Pipe Size: 1/4-inch NPT
• Orifice: 1/8 inch
• Operating Pressure: 0–100 PSI
• Voltage: 110/120V AC
• Coil Class: H
• Body Material: Brass
• Seal Material: Nitrile
• Housing: 1/2-inch conduit, NEMA 4X
• Suitable for compatible air, water, light oil, and neutral gas applications

Common Questions

Is the S302GH02N8BD5 normally open or normally closed?
The S302GH02N8BD5 is a normally open (N/O) valve. It remains open when the coil is not energized and closes when electrical power is applied.

What size is the GC Valves S302GH02N8BD5?
The valve uses a 1/4-inch NPT connection with a 1/8-inch orifice.

What voltage does this valve require?
This configuration uses a 110/120V AC coil.

What is the pressure range?
The valve is rated for an operating pressure differential of 0–100 PSI for applicable air, gas, liquid, and light-oil applications.

What media can this valve handle?
The valve is designed for compatible media such as air, water, light oil, and neutral gases. Always verify media and seal compatibility before installation.

How do I confirm this valve is correct for my application?
Verify the complete existing part number along with the 1/4-inch NPT connection, 120V AC coil, normally open operation, pressure requirements, controlled media, seal material, and electrical housing before ordering.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

S302GH02N8BD5 is the cross for S302GF02N8BD5
