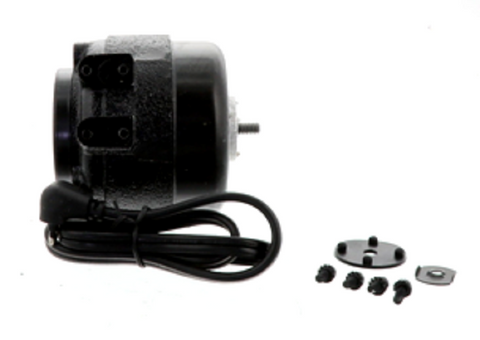

General Electric 5412 Motor

The General Electric 5412 unit bearing motor is a reliable 9-watt shaded pole motor engineered for continuous-duty applications in commercial refrigeration and HVAC systems. Operating at 115V single phase, this motor delivers a consistent 1550 RPM, making it a standard replacement for condenser and evaporator fan assemblies. The TEFC (Totally Enclosed Fan Cooled) design prevents ingress of moisture and debris, ensuring long-term performance in demanding environments. Built with a 51 frame configuration, it features a cast iron housing for superior heat dissipation compared to aluminum alternatives. This CWLE (Clockwise Lead End) rotation motor utilizes a 1/4" x 20 threaded shaft for easy hub mounting. Designed for durability, the GE 5412 is a staple for contractors needing a drop-in solution for refrigeration fan motor replacement that minimizes downtime and maintains strict airflow requirements in critical cooling systems.

• Input Voltage: 115 Volts, single phase operation for standard commercial compatibility.
• Wattage: 9 Watts output with low amperage draw for energy efficiency.
• Speed: Fixed 1550 RPM ensures optimal CFM delivery for condenser coils.
• Enclosure Style: TEFC design protects internal windings from harsh environmental conditions.
• Mounting: Standard 51 Frame footprint allows for versatile installation across various OEM brackets.
• Build Quality: Unit bearing construction provides quiet operation and handles high-static pressure loads.

What is the direction of rotation for the GE 5412?
This motor is configured for Clockwise rotation when viewing the lead end (CWLE). Verify your fan blade pitch to ensure proper airflow direction before installation.

Can this motor be used in outdoor condenser units?
Yes, the totally enclosed fan cooled housing is specifically designed to handle moisture and outdoor elements common in HVAC refrigeration systems.

Does this motor require a capacitor?
No, the 5412 is a shaded pole motor and does not require a start or run capacitor, simplifying the electrical wiring process for field technicians.
