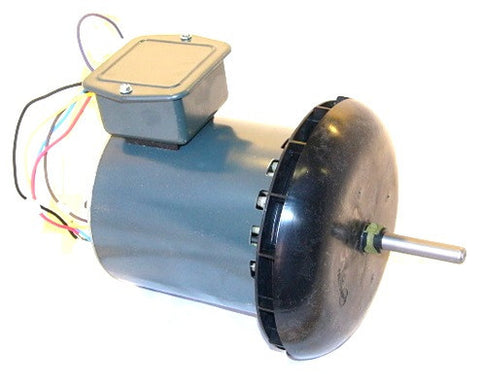

Carrier HC44VL851 Condenser Motor

Professional-grade Carrier HC44VL851 condenser motor provides high-torque performance for residential and light commercial condensing units. This 1/2 HP condenser fan motor is a direct OEM-spec component, replacing older Carrier, Bryant, and Payne part numbers such as HC44VQ851 and 5KCP39KGL290S. Engineered for 200-230V single-phase electrical systems, this 1075 RPM HVAC motor maintains critical airflow across the condenser coils for heat rejection. Utilizing a permanent split capacitor (PSC) design, it operates at a 4.6/2.3 FLA rating depending on lead configuration. The motor features a 48Y frame with a 5-5/8 inch diameter and a 1/2-inch by 2.5-inch shaft, facilitating a standard belly band mount installation. Technical reliability is ensured through CCW rotation (lead end) and sealed ball bearings designed for high-ambient outdoor environments. For peak efficiency, contractors should verify 7.5 MFD / 440V capacitor compatibility during field replacement.

Key Benefits:

• Direct OEM Compatibility: Specifically designed to match the electrical and physical footprints of 38AB, 38AA, and 38AC Carrier condensing units.
• Industrial-Grade Thermal Protection: Integrated internal overload protection prevents winding burnout during high-static or high-ambient cycles.
• Broad Voltage Range: Capable of handling 208-230V variations while maintaining a consistent 1075 RPM output for stable subcooling.
• Standardized Mounting: The 1/2" x 2.5" shaft and belly band mounting configuration allow for quick field swaps without bracket modification.

Common Questions:

What is the rotation for the HC44VL851?
This motor is configured for CCW (Counter-Clockwise) rotation when viewed from the lead/back end, making it standard for most Carrier top-discharge fans.

Do I need to replace the capacitor with this motor?
Yes, it is standard trade practice to replace the 7.5 MFD / 440V run capacitor when installing a new condenser motor to ensure proper starting torque and prevent premature winding failure.

Can this motor replace high-voltage 460V units?
While some versions of this motor are dual-rated, always verify the nameplate on the HC44VL851 to ensure it matches your specific 200-230V or 460V application requirements before wiring.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
