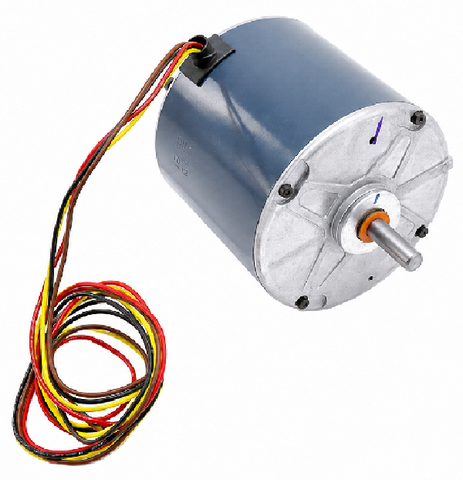

Heil Quaker ICP 1173779 Motor

When you need a reliable OEM replacement motor for ICP, Heil, or Quaker condenser units, the 1173779 Condenser Fan Motor is the industry-standard spec for maintaining system pressure and thermal exchange. This 1/4 HP condenser motor operates at 825 RPM with a 2-speed configuration, providing the precise CFM required for 48 NEMA Frame applications. As a Permanent Split Capacitor (PSC) motor, it requires a 7.5 MFD at 370 VAC capacitor (sold separately) to ensure proper starting torque and operational efficiency. Designed for 208-230V single-phase power, this motor is the direct replacement for HC39GE245, featuring a CW rotation (clockwise) and a 1/2-inch diameter shaft. The sleeve bearing design and thru-bolt mount allow for a seamless drop-in installation, while the 1.4 Amp draw keeps the unit within original electrical tolerances. Pro-tip: Always inspect the fan blade for balance during replacement to prevent premature bearing wear on the new 1173779 motor.

• Precise Compatibility: Engineered as a direct drop-in for HC39GE245 and compatible with major brands including Heil, Quaker, and Tempstar.
• Efficient Performance: Features a 2-speed 825 RPM range to match original equipment air-over cooling requirements.
• Heavy-Duty Construction: Built with a 48 Frame size and thru-bolt mounting for stable integration in outdoor condenser housings.
• Optimized Electrical Load: Low 1.4 Amp draw provides consistent performance on 208-230Vac circuits.

What capacitor is required for the 1173779 motor?

This motor requires a 7.5 MFD / 370V run capacitor. It is best practice to install a new capacitor whenever the motor is replaced to ensure the start windings are protected.

Is this a multi-speed or single-speed motor?

The 1173779 is a 2-speed motor, making it suitable for units with complex control boards that vary fan speed based on ambient temperatures or head pressure.

Can this motor replace the HC39GE245?

Yes, the 1173779 is the official manufacturer-designated direct replacement for HC39GE245, maintaining all physical and electrical specifications.
