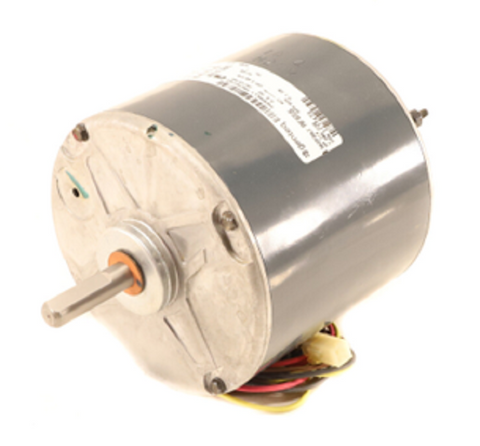

Heil Quaker ICP 1177473 Motor

The Heil Quaker ICP 1177473 Motor is a high-performance 1/4 HP condenser fan motor engineered for reliable operation in heavy-duty residential and light commercial condensing units. This 825 RPM HVAC motor operates on a 208-230V single-phase power supply, providing the necessary torque for consistent airflow and efficient heat rejection. Designed as a NEMA 48 frame motor, it features a permanent split capacitor (PSC) design that ensures low power consumption at 1.2 Amps. The sleeve bearing construction and thru-bolt mounting system allow for a secure fit and smooth rotation in clockwise (CW) applications. As a 2-speed condenser motor, it provides the versatility required for various cooling load demands, making it a critical ICP HVAC replacement part for technicians servicing Heil, Tempstar, and Comfortmaker equipment.

• OEM Compatibility: Exact drop-in replacement for Heil Quaker 1177473 and International Comfort Products (ICP) systems, ensuring no-hassle installation and proper electrical matching.
• Optimized Performance: Specifically rated at 825 RPM to maintain factory-specified airflow patterns without overloading the compressor.
• Durable Construction: Features sleeve bearings designed for continuous air-over (CAO) duty, providing quiet operation in outdoor environments.
• Electrical Efficiency: Low 1.2 Amp draw reduces operational costs and minimizes heat generation within the motor windings.
• Flexible Mounting: The NEMA 48 frame with thru-bolt leads facilitates easy integration into standard condenser fan grilles.

What capacitor is required for the ICP 1177473 motor?
This motor typically requires a 5 MFD / 370V run capacitor to maintain proper phase shift and torque. Always verify the rating on the motor nameplate during installation.

Can I use this to replace a 1075 speed motor?
No. Replacing an 825 RPM motor with a higher-speed motor can cause the fan blade to pull excessive amperage, leading to motor failure or reduced coil heat transfer.

Is the rotation reversible?
This specific ICP 1177473 motor is factory-set for Clockwise (CW) rotation facing the lead end. Ensure your fan blade pitch matches this rotation before powering the unit.
