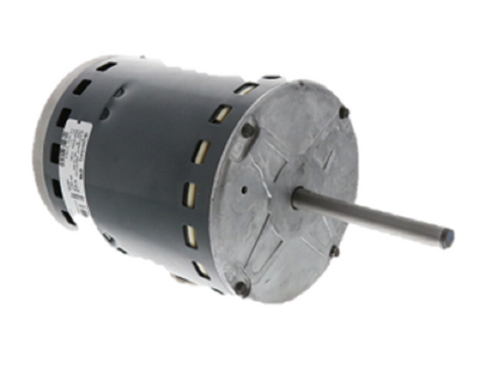

Heil Quaker ICP 1177612 Motor

The Heil Quaker ICP 1177612 Motor is a high-performance, 1 HP ECM blower motor designed for precise airflow management in residential and light commercial HVAC systems. Operating on 208-230Vac single-phase power, this X13 constant torque motor provides superior efficiency compared to legal standard PSC alternatives. Built with a NEMA 48 frame size and featuring a ball bearing design, this motor is engineered for high-duty cycles and reduced friction. The unit utilizes a band mount configuration and a 1/2" x 4" shaft with CCW rotation, making it a direct drop-in replacement for specified International Comfort Products (ICP) equipment. As a variable speed motor drawing 7.6 Amps, it allows for modulated airflow, which is critical for maintaining consistent static pressure and improving overall system SEER ratings. For technicians, the integrated motor control module simplifies installation by eliminating the need for complex field programming on compatible Heil, Tempstar, and Comfortmaker furnace and air handler models.

• OEM Compatibility: Precision-engineered for a seamless fit in ICP-manufactured units, ensuring direct replacement without bracket modifications.
• Variable Speed Efficiency: Features ECM technology to reduce energy consumption and provide quieter system operation.
• Industrial Build Quality: Equipped with permanently lubricated ball bearings for extended service life in high-static environments.
• Plug-and-Play Installation: Designed as a drop-in assembly that utilizes standard wiring harnesses for faster field service.

Is this motor a compatible replacement for my existing X13 motor?
Yes, the ICP 1177612 is a standard replacement for many 1 HP X13 blower motors found in Heil and Tempstar units. You should always verify the 5SME39SXL055A part number or your specific unit serial number to ensure exact electrical and module mapping.

Does this motor include the control module?
This is an integrated motor and module assembly. It comes pre-programmed for the torque and speed parameters required by compatible ICP air handlers and furnaces, facilitating a straightforward swap-out for failed 16-pin ECM units.

Can I use this motor to replace a standard PSC motor?
No, this variable speed ECM motor requires specific control signals from the furnace or air handler control board. It is only intended as a replacement for existing constant torque ECM or X13 style motors with matching specifications.
