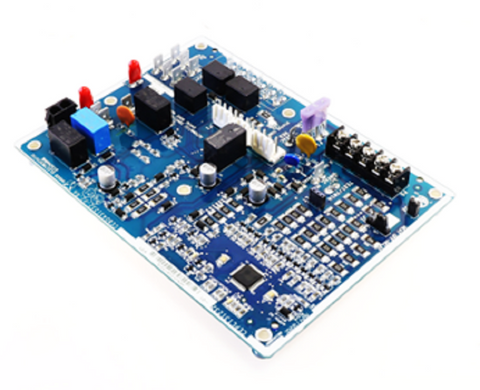

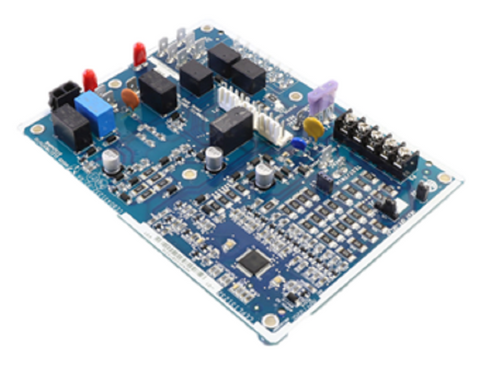

Heil Quaker ICP 1190596 Control Board

The Heil Quaker ICP 1190596 Control Board is a critical OEM replacement integrated furnace control designed for specific ICP, Heil, and Tempstar residential heating units. This furnace circuit board manages essential system sequences including hot surface ignition (HSI), inducer motor cycles, and blower speed timing. Engineered as a direct-fit HVAC control module, it ensures precise timing for gas valve actuation and flame rectification monitoring to maintain furnace safety standards. When troubleshooting common unit heater malfunctions or intermittent ignition failures, this board provides a reliable solution for restoring communication between the 115V power supply and low-voltage thermostat circuits. Its robust surface-mount components are built to withstand the thermal stress of high-efficiency heat exchangers, making it a staple for contractors performing ICF furnace repairs.

Key Benefits

• Precise integrated furnace control logic for optimized heating cycles.
• Direct ICP 1190596 replacement ensures plug-and-play installation without field modification.
• Multi-speed blower terminal support for enhanced airflow management.
• Diagnostic LED indicators for rapid fault code identification and HVAC troubleshooting.
• High-durability circuitry designed to resist moisture and vibration in demanding attic or crawlspace environments.

Common Questions

How do I verify if the ICP 1190596 is the correct board for my furnace?
Reference the part number stamped on your existing control board or consult the unit’s wiring diagram to ensure compatibility with the 1190596 specifications. This board is typically found in older ICP-manufactured 80% and 90% AFUE furnaces.

What are the signs of a failing furnace control board?
Common indicators include the blower motor running constantly, erratic furnace ignition sequences, or the absence of a status light. Verify 24V output to the gas valve and inducer before concluding the electronic control board is defective.

Does this board support cooling systems?
Yes, this integrated furnace control features terminals for both heating and cooling blower speeds, allowing it to manage air conditioner compressor signals via the standard Y/O thermostat wiring.
