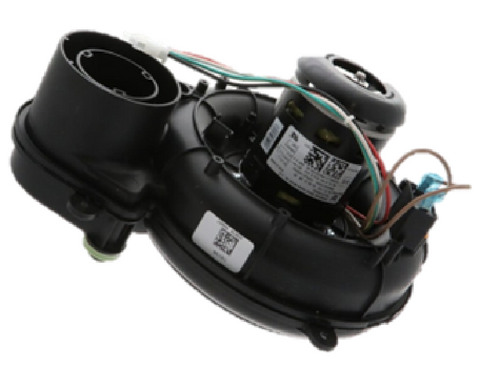

Heil Quaker ICP 1191199 Inducer Assembly

The Heil Quaker ICP 1191199 Inducer Assembly is a critical OEM replacement component designed to maintain the sequence of operation in high-efficiency furnaces. As a 2-speed, 115V draft inducer, this motor assembly is responsible for purging the heat exchanger of combustion gases and establishing the necessary static pressure to close the pressure switch. This assembly is a direct replacement for legacy part numbers 1193420 and 1184402, ensuring a precise fit without the need for field modifications. Fabricated by Broad-Ocean Motor (MFR #Y4L241B005L), the unit features a 1/20 HP motor rated at 3050 RPM, a 0.512 Amp draw, and CCW LE rotation. It is common across 80% and 95%+ AFUE platforms, including models from Heil, Comfortmaker, Tempstar, and Arcoaire, such as the G96CTN and N96VSN series. Using a genuine ICP 1191199 replacement inducer ensures that factory performance specifications are met, preventing common issues like premature pressure switch trips or harmonic vibrations associated with lower-quality aftermarket alternatives.

Key Benefits:

• Broad Compatibility: Serves as the factory-authorized replacement for 1193420, 1184402, 1184768, and 1185555.
• Optimized Performance: Dual-speed operation at 3050 RPM provides efficient venting across both low and high-fire heating stages.
• Complete Kit: Often includes the inlet choke plate and outlet restrictor required for specific cabinet configurations to ensure proper static pressure.
• Precision Engineering: Features a single-phase, 60Hz 115V motor with Insulation Class B rating for thermal protection and reliable operation in high-temp vestibules.

Common Questions:

Is the ICP 1191199 a direct drop-in for 1193420?
Yes, the 1191199 is the current OEM designation and a functional equivalent to the 1193420. It matches the mounting bolt pattern and wiring harness connectors of the original assembly.

Will this inducer fix a "Pressure Switch Stuck Open" fault?
While a faulty inducer is a common cause—due to a fouled wheel or failing bearings—technicians should first verify that the pressure port is clear and the flue is not obstructed. If the motor fails to reach its rated 3050 RPM, it will not generate the vacuum needed to prove the circuit.

Does this unit include the mounting gasket?
OEM kits typically include the necessary perimeter gasket or specialized mounting hardware required to maintain a gas-tight seal against the collector box.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
