Henry Technologies S-9130 Regulator

4 Oil Level Regulator

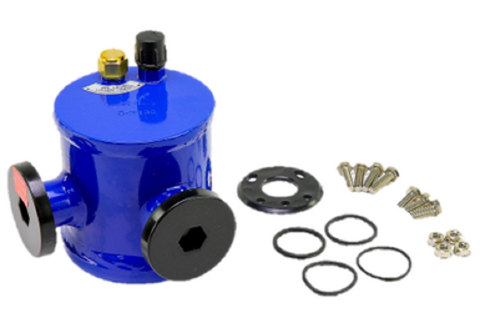

Henry Technologies S-9130 Mechanical Oil Level Regulator | Adjustable Oil Regulator for Parallel Compressor Systems

The Henry Technologies S-9130 Oil Level Regulator is a premium mechanical oil level controller designed to precisely maintain compressor crankcase oil levels in low pressure oil management systems. Ideal for parallel compressor racks, the S-9130 is engineered for high-performance refrigeration applications and is fully adjustable during system operation—no shutdown or disconnection required.

This regulator is designed to bolt directly to the compressor's sight glass housing, making it a reliable, space-saving solution for a variety of commercial and industrial compressor setups.

🔧 Key Features:

• Model: S-9130

• Type: Adjustable Mechanical Oil Level Regulator

• Oil Level Control Range: 1/4 to 5/8 sight glass

• Operating Pressure Differential: 5 to 90 PSI (0.35 to 6.2 Bar)

• Operating Temperature Range: 15°F to 300°F (-9.4°C to 148.9°C)

• Maximum Working Pressure: 450 PSI (31 Bar)

• Oil & Equalization Connections: 3/8" SAE flare

• Compressor Mounting: 3-bolt universal flange (1-7/8")

• Construction: Steel shell and cap, brass float valve with stainless steel needle and float ball

• Approvals: UL & C-UL Listed

• Country of Origin: USA

• Dimensions (in): 5.602 (L) x 5.602 (W) x 5.61 (H)

• Weight: 4.2 lbs

✅ Product Benefits:

• Adjustable while in operation – no need to shut down system

• Compatible with HFC/HCFC refrigerants and associated oils

• Durable construction for industrial environments

• Adapters available for most compressor models

• Ideal for multi-compressor systems with pressure equalization ports

Applications:
✔️ Commercial Refrigeration
✔️ Parallel Compressor Racks
✔️ Supermarkets
✔️ Cold Storage Facilities
✔️ Industrial HVAC Systems

Ensure optimal compressor performance and oil balance with the Henry S-9130 Mechanical Oil Level Regulator — built for reliability, engineered for precision.

This item is not eligible for free shipping.
