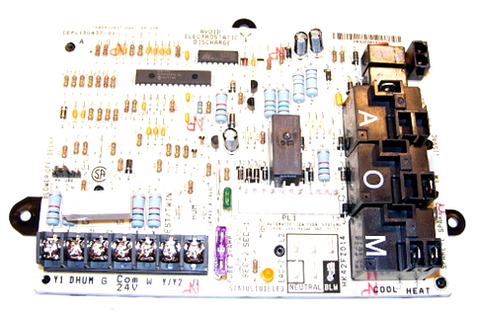

Carrier HK42FZ014 Circuit Board

The Carrier HK42FZ014 Circuit Board is a critical OEM integrated furnace control engineered for precision timing and sequence management in Carrier, Bryant, and Payne residential systems. As a veteran-grade HVAC replacement part, this integrated furnace control (IFC) manages essential functions including the hot surface ignitor, blower motor speeds, and safety circuit monitoring. With its embedded microprocessor logic, the HK42FZ014 replaces several legacy part numbers such as CEPL130437-01 and HK42FZ0141313, ensuring drop-in compatibility and reduced troubleshooting time on the job site. The board features an onboard status code LED for rapid furnace diagnostics, allowing technicians to verify flash codes and identify faults in the ignition or safety string immediately. Designed for high-duty cycles, this Carrier furnace circuit board regulates the 24V transformer output and 120V line voltage for the inducer and circulator fans with precision-engineered relays. When repairing aging 58DLA or 311AAV series units, using this factory-authorized HK42FZ014 control board preserves system integrity and prevents the communication errors often found with generic aftermarket alternatives.

• Direct OEM Fit: Eliminates mounting issues and wiring harness modifications common with universal boards.
• Advanced Diagnostics: Built-in LED provides clear fault codes to expedite the repair of ignition failures or limit switch trips.
• Comprehensive System Control: Manages 120V blower operation, humidifier triggers, and electronic air cleaner (EAC) terminals.
• Enhanced Safety Logic: Microprocessor continuously monitors the flame sensor and pressure switch to prevent unsafe operation.

Is the Carrier HK42FZ014 compatible with my older furnace model?
This board is a direct replacement for many Carrier, Bryant, and Payne furnaces. Always cross-reference your existing part number (e.g., CEBD430437-09A) or your specific model number (like 58MXA or 311AAV) to ensure a precise electrical match.

What do the LED flash codes on the HK42FZ014 indicate?
The status LED provides specific pulses that correspond to system faults. For example, a "31" typically indicates a pressure switch non-closure, while a "14" or "34" relates to ignition lockouts. Always consult the door chart for model-specific code definitions.

Can I use this board to replace a non-integrated ignition module?
No. The HK42FZ014 is an integrated furnace control designed for systems where the ignitor and blower timing are managed by a single PCB. It cannot be used as a substitute for standalone ignition modules or non-integrated fan timers.
