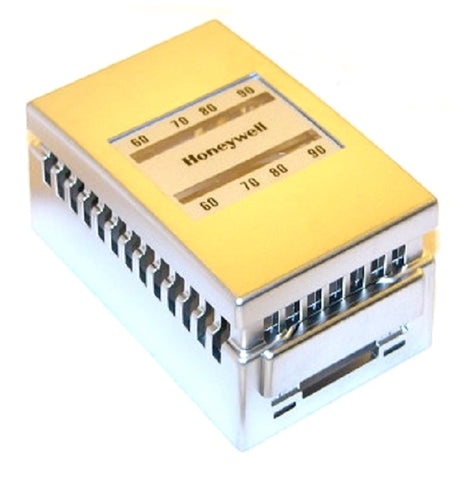

Honeywell 14004406-311 Humidistat Cover

Maintain the integrity of your pneumatic control systems with the Honeywell 14004406-311 chrome cover. This vertical humidistat cover is engineered for industrial and commercial environments, providing a rugged shield for Honeywell TP970 series and compatible pneumatic thermostats. Designed specifically for vertical mounting, this unit features a 60-90 degree Fahrenheit adjustable scale with integrated windows for both setpoint and thermometer displays, allowing technicians to verify calibration and environmental conditions at a glance without removing the protective housing.

The Honeywell 14004406-311 technical specifications ensure a precise fit for existing backplate assemblies, utilizing standard setscrew mounting for secure attachment. This part is functionally identical to the 14004406-311/U model, maintaining seamless compatibility with TP971, TP972, and TP973 pneumatic controllers. The durable chrome finish provides superior resistance to dust and superficial impacts compared to plastic alternatives, ensuring long-term reliability in high-traffic mechanical rooms or industrial zones. For service contractors, this Honeywell pneumatic thermostat cover serves as a direct OEM replacement to restore professional aesthetics and protect sensitive internal components from debris.

• Universal Compatibility: Fits Honeywell TP970, TP971, TP972, and TP973 pneumatic series.
• Dual Display Windows: Dedicated cutouts for both setpoint adjustment and thermometer monitoring.
• Field Durability: Industrial-grade chrome construction protects against contaminants and physical wear.
• Precise Engineering: Designed for an exact fit on vertical backplates using standard technician tools.

Is the 14004406-311 interchangeable with the 14004406-311/U?
Yes, both part numbers refer to the same physical unit; the "U" suffix typically denotes a universal or retail-packaged version but the technical specifications and dimensions are identical.

Can this cover be used for horizontal mounting applications?
No, this specific model is designed for vertical orientation. Using it horizontally would misalign the setpoint scale and thermometer display windows.

What range does the temperature scale support?
The integrated scale is calibrated for a range of 60°F to 90°F, matching standard commercial pneumatic setpoints.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
