Honeywell 316027-00042 Replacement Spring

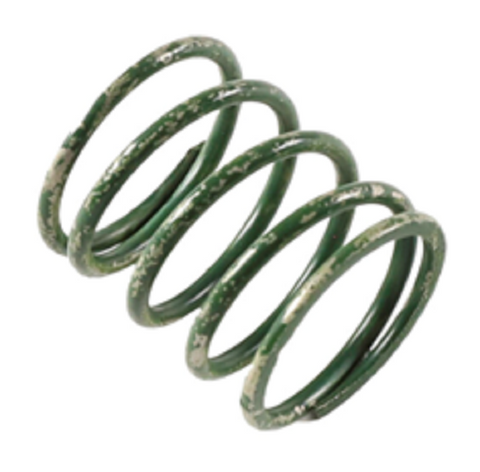

For contractors maintaining pneumatic control sequences, the Honeywell 316027-00042 Replacement Spring is the essential OEM component for restoring original factory calibration to pneumatic valve actuators. Specifically color-coded as the green spring, this precision-engineered part dictates a 2-5 PSI spring range, which is critical for sequencing and modulating control in commercial HVAC environments. Utilizing the correct valve actuator spring ensures that the stem return and positioning remain consistent with the original system design, preventing hunting and premature wear on the Honeywell pneumatic valve assembly.

This replacement is engineered for seamless field installation in Honeywell VP525, VP527, and VP531 Series valves. By replacing fatigued or corroded springs with this genuine Honeywell 316027-0042, technicians ensure the pneumatic control system operates within its designated pressure parameters. Maintaining the integrity of the spring range is vital for achieving the correct fail-safe position and linear response required in complex air handling and terminal unit applications.

Key Benefits for the Contractor:

• Precise Pressure Sequencing: The 2-5 PSI range allows for accurate stage integration in multi-valve pneumatic setups.
• Direct Compatibility: Engineered specifically for Honeywell VP525, VP527, and VP531 Series valves, eliminating the risk of incorrect stem tension.
• System Reliability: Restores factory-spec tension to the pneumatic actuator, ensuring consistent valve modulation and shut-off.
• OEM Standards: Using genuine Honeywell parts maintains the technical integrity of the control loop without the risk of non-standard spring rates.

Common Questions & Technical Insights:

Can this spring be used to change the pressure range of my existing valve?
Yes, if the application requires a 2-5 PSI shift, this green spring can be installed in compatible VP-series valves to modify the start point and operating range of the actuator, provided the technical specifications of the controller are also adjusted.

How do I identify the correct replacement spring for my Honeywell actuator?
Honeywell uses a color-coding system for their pneumatic springs. The 316027-00042 is identifiable by its green finish, indicating the specific 2-5 PSI compression rate required for VP525, VP527, and VP531 models.

Why is the PSI range on a pneumatic spring important?
The PSI range determines when the valve begins to open and when it reaches full stroke. Using an incorrect spring rate will disrupt the HVAC control sequence, leading to poor temperature regulation and inefficient system operation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
