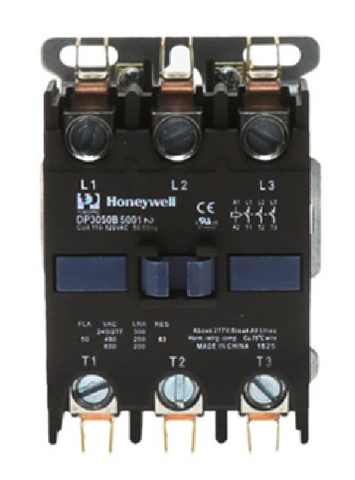

Honeywell DP3050B5001 Contactor

The Honeywell DP3050B5001 is a high-performance 3-pole definite purpose contactor engineered for demanding HVACR and industrial motor control applications. Operating with a 120V AC coil, this PowerPro series model features 50 Amp inductive and 63 Amp resistive ratings, providing robust switching capacity for induction motors, compressors, and heating elements. As the direct DP3050B5001 updated version for DP3050B5000, it maintains a small footprint with a universal mounting base for seamless field replacement. The silver cadmium oxide contacts are designed to resist welding and pitting, ensuring electrical longevity under high-inrush loads. For secure terminations, it utilizes 1/4" quick connects and #6 screws, while the shrouded coil construction protects internal components from debris. This Honeywell 50A contactor is UL Recognized and CSA Certified, meeting strict safety standards for commercial and industrial electromagnetically controlled switching environments.

Key Benefits for Contractors

• Universal Compatibility: Standard mounting holes and slots allow this unit to replace most competitive 3-pole 50A contactors without bracket modifications.
• Enhanced Durability: Features silver cadmium oxide contacts and a shrouded coil to survive high-cycle applications in harsh mechanical rooms.
• Reliable Termination: Equipped with heavy-duty #6 screws and quick-connect terminals to ensure a low-resistance connection and prevent terminal overheating.
• Wide Operating Range: Rated for ambient temperatures between -4?F and 149?F, making it suitable for unconditioned rooftop units and industrial enclosures.

Common Questions

Is the DP3050B5001 a suitable replacement for the DP3050B5000?
Yes, the DP3050B5001 is the official designated update for the discontinued DP3050B5000 model, maintaining the same electrical specifications and mounting dimensions.

Can this contactor be used for single-phase or three-phase loads?
This 3-pole contactor is primarily designed for three-phase motor control but can be utilized for single-phase applications where multiple poles are required for safety or circuit isolation.

What is the difference between the inductive and resistive ratings on this model?
The unit is rated for 50A Full Load Amps (FLA) for inductive loads (like motors and compressors) and 63A for resistive loads (like electric heat strips).
