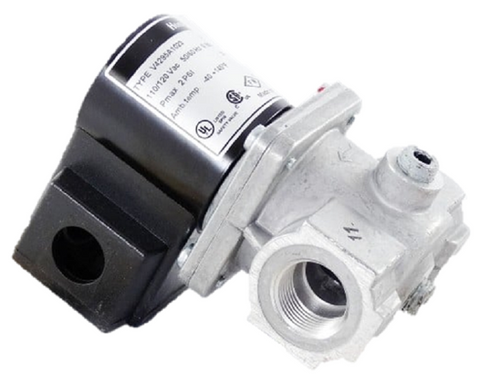

Honeywell V4295A1023 Gas Valve

Solenoid Gas Valve, 120Vac, 3/4", 645 Cfh Capacity, 2 Psi pressure Rating, Air, Natural, Manufactured, Mixed and LP Gas, Straight Through, Non Offset, Screw Terminals, 1/4" NPT Inlet/Outlet Pressure Tapping, Vertical to 90 Degrees from Vertical Mounting, Less than 1 Second Valve Opening Time, Less than 1 Second Valve Closing Time, -40-130 Degree Operating Temperature Range, Die Cast Aluminum Body

Honeywell V4295A1023 3/4" Solenoid Gas Valve – 120VAC, 2 PSI, 645 CFH, Normally Closed

The Honeywell V4295A1023 is a high-performance solenoid gas valve designed for reliable and secure control of gas flow in heating systems. Operating on 120 VAC, this normally closed 3/4-inch NPT valve features a straight-through, non-offset body design that ensures consistent flow for a variety of gas types, including natural gas, LP gas, manufactured, mixed gas, and air.

With a maximum capacity of 645 cubic feet per hour (CFH) and a 2 PSI pressure rating, this valve is engineered for fast response times, opening and closing in less than one second. It is ideal for applications requiring positive shut-off and precise control, making it a preferred choice for residential, commercial, and industrial gas systems.

Key Features:

• Voltage: 120 VAC

• Pipe Size: 3/4" NPT

• Capacity: 645 CFH

• Pressure Rating: 2 PSI

• Gas Types: Air, Natural, Manufactured, Mixed, LP

• Body Material: Die-Cast Aluminum

• Mounting: Vertical to 90° from vertical

• Upstream and downstream pressure taps for easy testing

• High spring force supports up to 0.7 PSI back pressure at the valve seat

• No inlet pressure influence ensures consistent valve closure

• Low operating noise and low inrush current

Technical Specifications:

• Valve Type: Solenoid, Normally Closed

• Body Pattern: Straight-through, non-offset

• Temperature Range: -40°F to 130°F (-40°C to 50°C)

• Inlet/Outlet Taps: 1/4" NPT

• Termination: Screw terminals

Applications:
Perfect for use with 120 VAC gas control systems, the Honeywell V4295A1023 offers reliable shut-off in case of power loss, making it essential for safety-critical environments. Whether you're upgrading a furnace, boiler, or other gas-powered system, this gas valve provides the performance and peace of mind you need.
