ICM Controls ICM1501 Control

Oil Primary, Intermittent Ignition, flame sensing circuit, 15 sec, safety switch, reset button

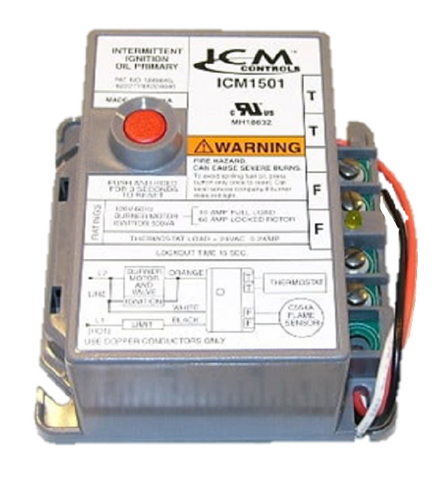

ICM Controls ICM1501 Intermittent Ignition Oil Primary Control

Upgrade your oil burner system with the ICM Controls ICM1501, a dependable and UL-approved intermittent ignition oil primary control designed for safety, performance, and reliability. As a direct Honeywell OEM replacement, this control is ideal for residential oil-fired burners used in boilers, furnaces, water heaters, and other oil-burning appliances where pre/post-purge is not required.

The ICM1501 features a 15-second safety timing, solid-state flame sensing circuit, and a convenient external reset button for easy troubleshooting and system reset. It utilizes a C554A Cadmium Sulfide (cad cell) Flame Detector to monitor the burner flame and automatically shuts down the system in case of flame failure, ensuring maximum protection.

Key Features:

• Reliable Control Functionality: Operates oil burner, oil valve (optional), and ignition transformer in response to a heat call.

• Advanced Safety System: 15-second safety timing with enclosed safety switch and external reset button.

• Flame Sensing Circuit: Solid-state cad cell flame detection for accurate monitoring and safety shutdown.

• LED Status Indicator: Built-in LED indicates system status and assists in diagnostics or troubleshooting.

• Easy Installation: Mounts on a standard 4×4 J-Box or directly on the burner housing.

• Manual Lockout Function: Allows manual system lockout for testing or maintenance.

Specifications:

• Ignition Type: Intermittent

• Safety Timing: 15 seconds

• Electrical Rating (Contacts – Full Load): 7.4A @ 120 VAC; 3.7A @ 240 VAC

• Electrical Rating (Contacts – Locked Rotor): 44.4A @ 120 VAC; 22.2A @ 240 VAC

• Temperature Range: -30°F to 130°F

• Mounting Bracket: Standard 4×4 J-Box or direct mount on burner housing

• Approvals: UL Approved

• Flame Detector: Compatible with C554A Cadmium Sulfide Flame Detector

• Thermostat Requirement: 24 VAC thermostat

Applications:

• Oil-fired boilers

• Forced air furnaces

• Water heaters

• Other residential and light commercial oil-burning appliances

Why Choose the ICM1501?

The ICM Controls ICM1501 combines durability, precision, and safety for dependable oil burner operation. With its built-in LED diagnostics, solid-state circuitry, and easy reset function, it’s the perfect choice for replacing competitive models while maintaining consistent, efficient system control.

Brand: ICM Controls
Model: ICM1501
Type: Intermittent Ignition Oil Primary Control
OEM Replacement: Honeywell
