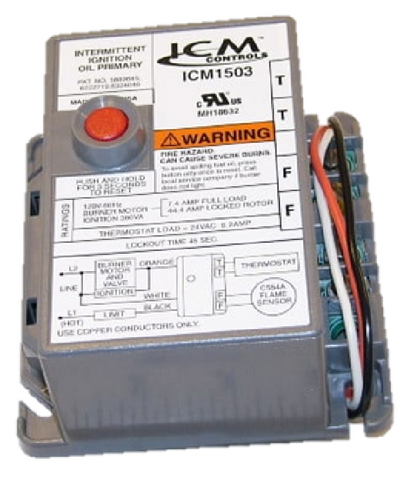

ICM Controls ICM1503 Control

ICM1503 is the direct replacement for 48245

ICM Controls ICM1503 Oil Primary Control – Intermittent Ignition, 45-Second Safety Timing

The ICM Controls ICM1503 is a reliable oil primary control designed for intermittent ignition oil burners. Part of ICM’s proven 1500 Series, this control features patented energy transfer technology that ensures the fuel valve and pump are only energized when the control is operating correctly. With a solid-state flame sensing circuit, 45-second safety timing, and an external reset button, the ICM1503 delivers dependable performance, safety, and easy troubleshooting for residential and light commercial oil heating systems.

Engineered as a direct replacement for popular competitive models, the ICM1503 mounts easily on a standard 4 x 4 junction box or directly on the burner housing, making it ideal for both new installations and service replacements.

Product Features & Benefits

• Controls the oil burner, oil valve (optional), and ignition transformer in response to a call for heat

• Intermittent ignition for efficient and reliable operation

• Solid-state flame sensing circuit for accurate flame detection

• 45-second safety timing for enhanced system protection

• LED indicator on terminal strip to signal system lockout

• Enclosed safety switch with convenient external reset button

• Patented energy transfer technology ensures safe energizing of fuel components

• Mounts on a standard 4" x 4" junction box or directly on burner housing

• Direct replacement for many Honeywell, Carlin, White Rodgers, and ICP/Tempstar models

Note: Requires C554A Cadmium Sulfide Flame Detector and 24 VAC thermostat (sold separately).

Replaces the Following Models

• Honeywell: R8184G4009, R8184G1138, R8184G1427, R8184G4025

• Carlin: 48245

• Tempstar / Heil: 1147017

• White Rodgers: 668-401

Specifications

• Brand: ICM Controls

• Model: ICM1503

• Ignition Type: Intermittent

• Safety Timing: 45 seconds

• Contacts (Full Load): 7.4A @ 120 VAC; 3.7A @ 240 VAC

• Contacts (Locked Rotor): 44.4A @ 120 VAC; 22.2A @ 240 VAC

• Mounting: Standard 4" x 4" J-Box or direct burner housing mount

• Height: 4-3/8"

• Width: 4-1/8"

• Depth: 2-1/2"

• Operating Temperature Range: -30°F to 130°F

Safety Information

• California Proposition 65 Warning

The ICM Controls ICM1503 Oil Primary Control is a trusted, energy-efficient solution for oil burner applications, offering dependable ignition control, enhanced safety features, and broad replacement compatibility—making it an excellent choice for HVAC professionals and service technicians.
