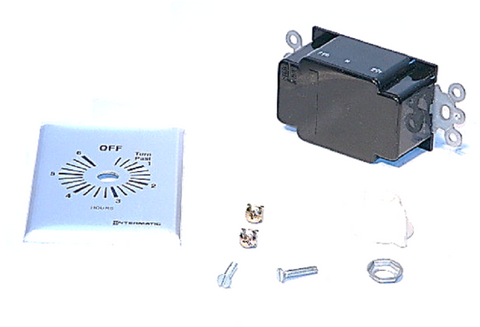

Intermatic FF6H Timer

The Intermatic FF6H is a heavy-duty 6-hour spring wound timer engineered for precise manual override control in demanding commercial and industrial environments. This SPST (Single Pole Single Throw) interval timer is designed for high-amperage loads, featuring a 20 Amp inductive rating at 125 VAC and a 7-HP motor rating at 240 VAC. The mechanism replaces standard toggle switches to provide energy-saving timed-off control for exhaust fans, lighting circuits, and heavy-duty blowers. Built with a rugged brushed aluminum faceplate, the FF6H utilizes a commercial-grade metal construction that withstands repetitive use in mechanical rooms and job sites. The twist-to-set mechanism allows for immediate operation without the complexity of digital programming or the need for a neutral wire, making it a drop-in solution for contractors retrofitting older systems. Its teardrop dial provides clear visibility of the remaining countdown, ensuring accurate power management and preventing equipment burnout from excessive runtimes.

• High-Amperage Capacity: Rated for 20A resistive and 7-HP motors, eliminating the need for additional contactors in many applications.
• No Neutral Required: Simplifies installation in older electrical boxes where a neutral wire may not be present.
• Durable Aluminum Finish: Provided with a brushed metal faceplate and commercial-grade metal dial for long-term reliability in high-traffic areas.
• Universal Compatibility: Fits into standard single or multi-gang electrical boxes as a direct decorator wall plate replacement.
• Simplified Control: Offers a straightforward 6-hour countdown range for controlling ventilation, heating, or process equipment.

What is the maximum electrical load for the Intermatic FF6H?
The unit is rated for 20 Amps at 125 VAC, 10 Amps at 250 VAC, and up to 7-HP at 240 VAC, making it suitable for heavy-duty HVACR motors.

Can this timer be used for outdoor applications?
The standard FF6H is intended for indoor use. For outdoor or wet-location requirements, it must be installed in a NEMA 3R rated enclosure or weatherproof box.

Does this unit support 277V lighting circuits?
Yes, the Intermatic FF series is rated for 277 VAC ballast loads, commonly utilized in commercial lighting installations.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
