Johnson Controls M9000-534 Linkage

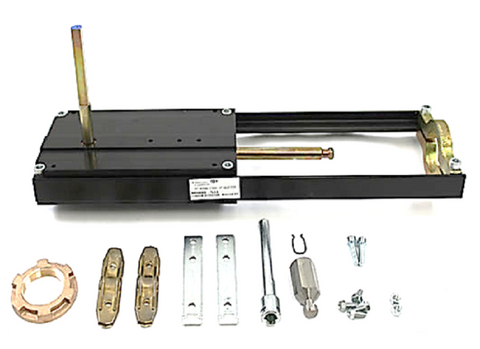

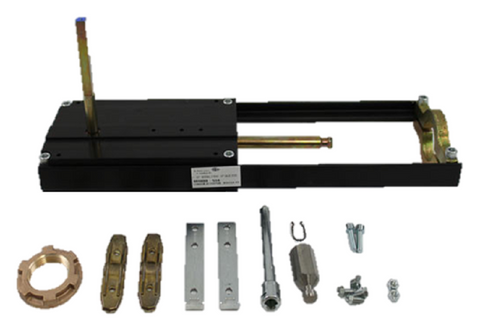

The Johnson Controls M9000-534 Linkage is a heavy-duty mechanical interface designed specifically for field-mounting tandem M9124 or M9220 Series electric spring-return actuators onto 5-inch flanged iron globe valves. This industrial-grade linkage kit ensures precise linear stroke translation and high-torque delivery required for large-bore valve automation in critical HVAC systems. Engineered for durability, the M9000-534 facilitates a secure connection between the dual-actuator assembly and the valve stem, providing the necessary mechanical advantage for reliable shut-off against high close-off pressures. Whether you are performing a globe valve retrofit or installing a new tandem actuator configuration, this kit simplifies the mounting process while maintaining exact alignment to prevent premature packing wear. Professional installers rely on this linkage for its compatibility with Johnson Controls iron valves, ensuring consistent flow control and fail-safe performance in demanding commercial environments.

• Tandem Actuator Support: Specifically engineered to cradle dual M9220 or M9124 actuators for increased torque application.
• Direct Compatibility: Seamlessly integrates with 5-inch flanged iron globe valves without the need for custom fabrication.
• Rugged Construction: Built to withstand high-cycle applications in centralized plant steam or chilled water systems.
• Precision Alignment: Reduces lateral force on the valve stem to extend the service life of internal seals and packing.

Common Questions

Can the M9000-534 be used with a single actuator?
This specific linkage is designed for tandem mounting to drive larger 5-inch valves that require the combined torque of two actuators. For single-actuator applications, verify the torque requirements of the valve's close-off pressure profile.

Is this linkage compatible with non-Johnson Controls valves?
The M9000-534 is engineered for 5-inch flanged iron globe valves from Johnson Controls. Using this on third-party valves may require professional field modification or result in improper stroke calibration.

What actuators are compatible with this kit?
This kit is built for M9124 and M9220 Series spring-return actuators configured in a tandem arrangement to ensure fail-safe operation upon loss of power.
