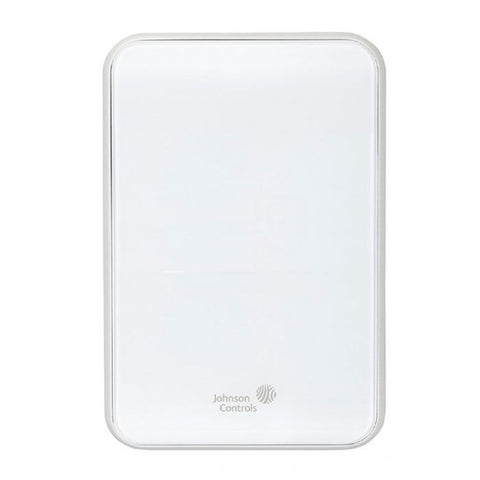

Johnson Controls NSB8BTN040-0 Sensor

The Johnson Controls NSB8BTN040-0 is a high-precision network temperature sensor designed for seamless integration within the Metasys system and Facility Explorer environments. As a direct NS-BTN7003-0 replacement and NS-BTN7001-0 replacement, this unit utilizes the BACnet MS/TP protocol to communicate directly with field controllers over the SA Bus. Engineered for professional contractors, the NSB8BTN040-0 features a digital temperature sensor that provides accurate zone temperature monitoring without the need for local display or setpoint adjustment, maintaining a clean, tamper-resistant profile in commercial spaces. This Johnson Controls white sensor with logo supports both surface mount and vertical wallbox installation, offering versatile field options for HVAC network sensors. Technicians can leverage the onboard SA Bus access port for rapid 10-foot local commissioning and troubleshooting via a laptop or handheld tool, streamlining high-performance building automation system deployments.

Key Benefits

• Seamless Compatibility: Functions as a drop-in replacement for obsolete NS-BTN7003-0 and NS-BTN7001-0 models, ensuring zero downtime during retrofits.
• Advanced Communication: Utilizes BACnet MS/TP for reliable data transmission to FX-PC, Verasys, and Smart Equipment controllers.
• High-Accuracy Sensing: The digital temperature sensor delivers a measurement range of 32°F to 104°F (0°C to 40°C) with +/- 1.0°F resolution.
• Flexible Field Wiring: Features both a modular jack and screw terminal block for rapid SA Bus connectivity and 24V supply.
• Simplified Maintenance: The SA Bus access port allows for direct controller commissioning and diagnostics right at the sensor location.

Common Questions

How do I set the address for the NSB8BTN040-0 on the SA Bus?
Technicians can set the network sensor address using the dual-switch DIP block located on the sensor's printed wire board. The default factory address is typically 199, with selectable ranges from 200 to 206 for multi-sensor averaging applications.

Is the NSB8BTN040-0 compatible with third-party BACnet controllers?
While optimized for Johnson Controls systems like Metasys, the BACnet MS/TP protocol and SA Bus architecture are designed for standard communication with compatible HVAC automation field controllers that support 2-wire serial bus communication.

Can this sensor be mounted on a horizontal wallbox?
The NSB8BTN040-0 is specifically designed for vertical wallbox-mounted or surface-mounted applications. To ensure optimal airflow across the digital sensor and maintain accuracy, avoid horizontal rough-in orientations.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
