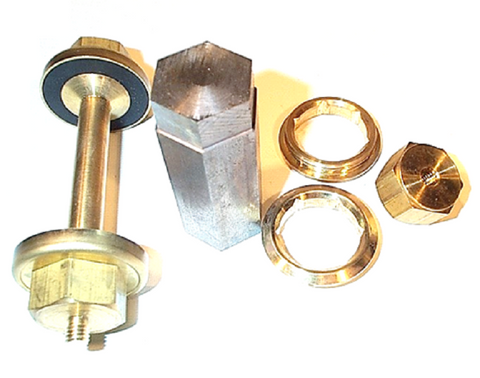

Johnson Controls STT17A-617R Repair Kit

The Johnson Controls STT17A-617R Seat Repair Kit is a critical maintenance component designed for the T-4000 series pneumatic thermostats and specific HVAC control valve assemblies. Engineered for precise pneumatic calibration, this kit addresses common failure points such as seat leakage and inconsistent air pressure regulation. Utilizing high-grade elastomers and precision-machined internal components, the STT17A-617R ensures optimal pneumatic signal accuracy and restores the integrity of the pilot port assembly. For technicians servicing legacy Johnson Controls pneumatic systems, this repair kit is essential for preventing air loss and ensuring proportional control stability. By replacing worn internal seals and seats with this OEM-spec hardware, you eliminate the need for full controller replacement, maintaining the original setpoint sensitivity and response time of the building automation system hardware. This kit is built for heavy-duty commercial environments where maintaining tight tolerances in pneumatic control loops is a requirement for operational efficiency.

Key Technical Benefits:

• Restores Signal Integrity: Prevents air bleed-off at the pilot seat, ensuring the pneumatic controller maintains precise output.
• Precision Fitment: Designed specifically for the Johnson Controls STT series, ensuring seamless integration with existing pilot assemblies.
• Enhanced Durability: Industrial-grade materials resist degradation from compressed air contaminants and temperature fluctuations.
• Cost-Effective Maintenance: Extends the service life of pneumatic thermostats without requiring expensive labor for full unit swap-outs.
• Stable Calibration: Eliminates hunting and erratic valve behavior caused by fouled or worn internal seats.

Common Technical Questions:

Does this kit include the diaphragm?
The STT17A-617R focuses specifically on the seat and internal seal components. If the diaphragm shows signs of cracking or loss of flexibility, it should be inspected and replaced separately to ensure full pneumatic recovery.

Is this compatible with competitive pneumatic controllers?
No, this kit is specifically engineered for Johnson Controls hardware. Using these components in non-specified brands will lead to improper seating and systemic air leaks.

What are the signs that a seat repair is necessary?
Look for a constant audible hiss from the thermostat, a failure to maintain branch pressure, or valves that remain stuck in one position despite changes in the pilot signal.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
