Johnson Controls TE-6001-3 Fittings

The Johnson Controls TE-6001-3 is a purpose-built well mounting kit designed for field technicians integrating TE-6000 temperature sensing elements into liquid-line applications. This package includes a rugged Handibox, packing nut, and specialized fittings specifically engineered for compatibility with WZ-1000 series immersion wells (including WZ-1000-2, -4, and -5 models). By utilizing this hardware, contractors can ensure a secure, moisture-resistant housing for sensors in high-demand HVACR systems.

For optimal performance in immersion well applications, the TE-6001-3 requires proper sealing. Use a high-grade silicon rubber sealant or plumber's putty around the packing nut adaptor and wire exits to prevent condensation buildup, which can lead to premature element failure. This kit facilitates the precise well insertion depth required for accurate thermal transfer from the process media to the TE-6000 series sensor. As a critical component for building automation and climate control, this assembly provides the structural integrity needed for industrial temperature monitoring.

• Maximum Compatibility: Seamlessly integrates with WZ-1000-2, -4, and -5 immersion wells and TE-6000 sensors.

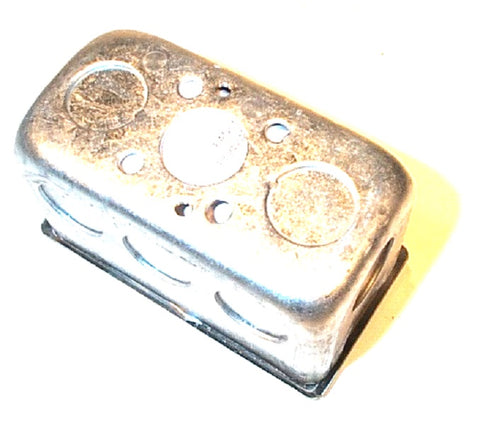

• Industrial Durability: Metal Handibox construction provides superior mechanical protection for sensing leads and terminations.
• Optimized Conductivity: Designed to work with factory-filled thermal compound wells for rapid response times.
• Moisture Protection: Includes a dedicated packing nut assembly to mitigate environmental ingress in liquid-line sensing.

Which immersion wells are compatible with the TE-6001-3?
This kit is specifically designed for use with Johnson Controls WZ-1000-2, WZ-1000-4, and WZ-1000-5 wells. It is not recommended for non-standard or third-party wells without verifying thread pitch and depth.

Does this kit include the TE-6000 sensor?
No, the TE-6001-3 consists of the mounting hardware (Handibox, packing nut, and fittings) only. The temperature sensing element must be purchased separately based on your specific resistance requirements.

How do I prevent condensation inside the Handibox?
Technicians should apply a sealant around the packing nut adaptor and at the point where sensor leads pass through to create an airtight barrier, preventing humidity from compromising the sensor electronics.
