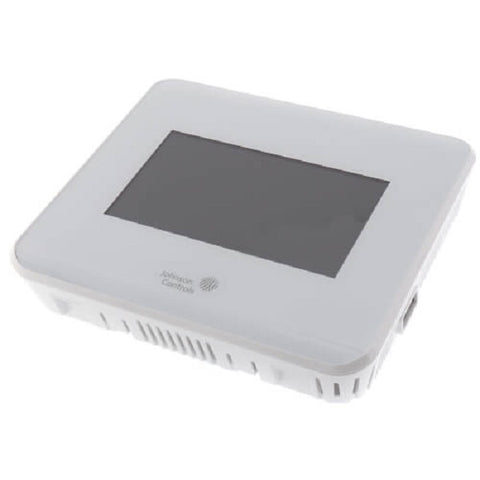

Johnson Controls TEC3612-14-000 Thermostat

The Johnson Controls TEC3612-14-000 is an advanced field-selectable BACnet MS/TP or N2 networked thermostat designed for precise control of fan coil units and zoning systems. This high-performance controller features a full-color capacitive touchscreen, providing an intuitive interface for managing on/off or floating control outputs. It serves as the direct replacement for TEC2127-2 and TEC3610-00-000, allowing for seamless integration into existing building automation systems without hardware modification. Engineered for commercial HVAC applications, it supports both two-pipe and four-pipe configurations with or without reheat to maintain tight space temperature and dehumidification control. The 19-30 VAC power requirement and dual configurable binary inputs allow for advanced monitoring of service alarms or remote occupies status. Built-in USB port configuration facilitates rapid cloning of settings between units, significantly reducing commissioning time for large-scale deployments. Its non-volatile memory ensures critical settings are retained during power fluctuations, maintaining system stability and occupant comfort. Key Benefits

• Field-Selectable Protocols: Easily switch between BACnet MS/TP and N2 communication to match your building automation network requirements.
• Enhanced Dehumidification: Integrated humidity sensor proactively manages space conditions in fan coil and VAV applications.
• Simplified Installation: Features USB cloning capabilities and an end-of-line (EOL) switch to streamline the setup process for contractors.
• Broad Compatibility: Supports a wide range of equipment including hydronic reheat, pressure-dependent VAV, and multi-speed fans.
• Energy Performance: Includes Optimal Start and configurable setpoints to improve building efficiency and reduce operational costs.

Common Questions

• How do I migrate from N2 to BACnet MS/TP on this model? The TEC3612-14-000 allows protocol selection directly through the installer configuration menu, eliminating the need for a hardware swap during network upgrades.
• Can this unit control variable speed fans? Yes, it supports on/off or floating fan configurations and can manage variable-speed/EC motors via compatible control sequences.
• Does this model include an occupancy sensor? While the TEC3000 Color Series offers PIR sensors, the TEC3612-14-000 specifically utilizes interlocked binary inputs or network commands for occupancy management.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
