Johnson Controls V-3000-6001 Diaphragm

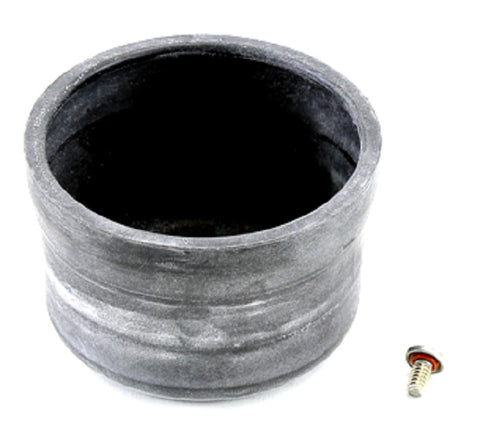

Maintaining the integrity of pneumatic valve actuators is critical for precise terminal unit control, and the Johnson Controls V-3000-6001 is the specific replacement diaphragm engineered for enclosed V-3000-2 and V-3000-8003 models. Often identified in the field by its compatibility with enclosed pneumatic actuators, this high-performance component facilitates consistent HVAC valve regulation by restoring the pressure-to-stroke linearity required for hot or cold water flow control. Designed for professional actuator repair, it allows technicians to extend the service life of Johnson Controls V-3000 series units without needing a full assembly swap. Because this pneumatic actuator part is a direct OEM fit, it ensures that the 1/4-28 stem operation remains within factory specifications, maintaining tight shut-off and optimal force output. For contractors managing VG7000 series bronze valves or legacy pneumatic control systems, keeping these diaphragms in stock prevents system downtime and ensures energy-efficient building automation through reliable mechanical actuation.

Key Benefits

• Direct OEM Compatibility: Specifically designed for enclosed V-3000-2 and V-3000-8003 actuators, ensuring a perfect mechanical fit.
• Field Serviceable: Enables repair of pneumatic valve actuators without removing the entire valve body from the line.
• System Longevity: High-grade material construction resists degradation from frequent pressure cycles in HVAC terminal units.
• Precision Control: Restores factory-spec air-to-pressure response for accurate terminal unit water regulation.

Common Questions

Is the V-3000-6001 compatible with exposed V-3000-1 actuators?
No, the V-3000-6001 is intended for enclosed actuators. For exposed models like the V-3000-1 or V-3000-8012, you must use the V-3000-6000 diaphragm.

Can this diaphragm be replaced while the actuator is still on the valve?
Standard service protocol suggests removing the actuator from the valve via the set screw for safer bench assembly, especially when dealing with pre-compressed springs during actuator repair.

What are the signs that a V-3000-6001 needs replacement?
Typical failure symptoms include air leakage from the actuator housing, failure of the valve to stroke fully, or hunting during pneumatic control signals.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
