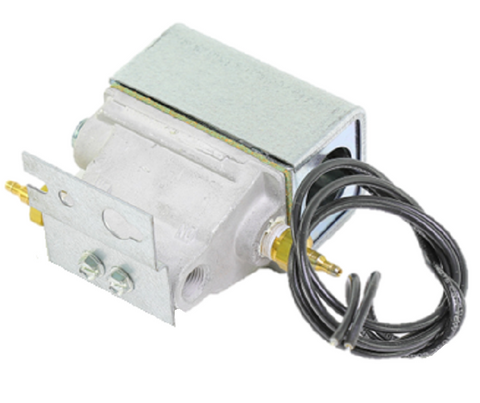

Johnson Controls V11HGA-100 Air Valve

24Vac 3 Way Solenoid Air Valve with 1/4" Barb Connection in Common Port and Normally Closed Port, 1/8" NPT Connection in Normally Open Port

V11HGA-100 is the direct replacement for V-2410-8

Johnson Controls V11HGA-100 3-Way Solenoid Air Valve – 24VAC, 1/4" Barb & 1/8" NPT Ports

The Johnson Controls V11HGA-100 is a high-performance 3-way solenoid air valve designed for precise control in HVAC and industrial pneumatic applications. Operating on 24VAC, this versatile valve features a compact design with high air capacity and dependable operation.

Key Features:

• Three-Port Configuration: Common (C), Normally Open (N.O. 1/8" NPT), and Normally Closed (N.C. 1/4" barb) ports.

• Air Capacity: Up to 1.5 SCFM (42 LPM) @ 15 PSIG for efficient flow performance.

• Operating Pressure Range: 0 to 20 PSIG (0 to 138 kPa).

• Temperature Range:

  • AC Models: 32°F to 140°F (0°C to 60°C)

  • DC Models: 32°F to 104°F (0°C to 40°C)

• Power Consumption:

  • AC Models: 6W

  • DC Models: 9W

• Manual Override: Optional override key available (Part #: Y99AA-4) for testing and system checkout.

• Construction: Compact, lightweight (0.9 lb), and mountable in any orientation.

• Certifications: UL listed (File MH3536) and CSA approved for reliable compliance.

• Electrical: Pre-wired 18" leads (18 AWG) with 7/8" knockout for 1/2" conduit connector.

• Warranty: 1-Year Manufacturer Warranty

Perfect for use in HVAC controls, building automation systems, and pneumatic sequencing, the V11HGA-100 delivers long-lasting performance and flexibility in tight spaces.
