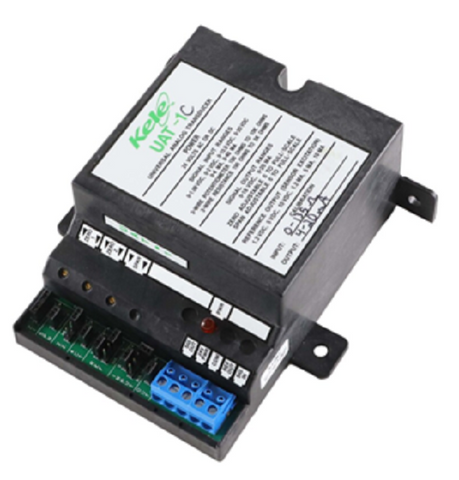

Kele Product UAT-1C Transducer

The Kele Product UAT-1C Transducer is a robust universal analog enclosed transducer designed for precise signal conversion and scaling in complex building automation systems (BAS). As the primary UAT-1 replacement, this unit effectively converts a 135 ohm to 4/20mA transducer input or other variable resistance signals into a linear analog output for industrial controllers. Engineered with a slim-line design, it optimizes panel space while providing the flexibility for jumper-selectable configurations. The UAT-1C supports 24 VAC/VDC operation and features field-calibratable zero and span potentiometers, allowing for high-accuracy performance across diverse HVACR applications. Contractors can easily toggle between direct or reverse acting modes using internal jumpers, ensuring seamless integration with existing analog signal converters and sensors. Whether you are managing 0-10 k? resistive loads or standard 4-20 mA loops, the Kele UAT-1C provides the high-accuracy signal conversion required for reliable facility management.

• Universal Compatibility: Operates as a direct 135 ohm to 4/20mA transducer and supports inputs up to 10 k?, 20 VDC, or 40 mA.
• Space-Efficient Enclosure: The UAT-1C series features an enclosed "slim-line" housing to maximize available space in packed control panels.
• Field Flexibility: Features jumper-selectable input/output ranges and action settings (Direct/Reverse) for rapid on-site adjustments.
• Reliable Performance: Delivers high linearity (<0.1% of span) for critical HVACR process control and monitoring.
• Refined Calibration: Independent 25-turn zero and span pots provide technical precision during the commissioning of signal loops.

• Can I use the UAT-1C to replace an older UAT-1 unit? Yes, the UAT-1C is the official direct replacement for the legacy UAT-1 model, maintaining the same electrical specifications in an enclosed format.
• What power supply is required for this transducer? It accommodates 24 VAC (±10%, half-wave) or 24 VDC (±10%), drawing between 50 mA and 100 mA depending on the voltage source.
• Is this unit suitable for DIN rail mounting? While the UAT-1C is an enclosed version, it is compatible with standard DIN rail mounting adapters (such as the UAT-1-C-47) for secure installation.
