GC Valves KS201AF02N5EG5 Repair Kit

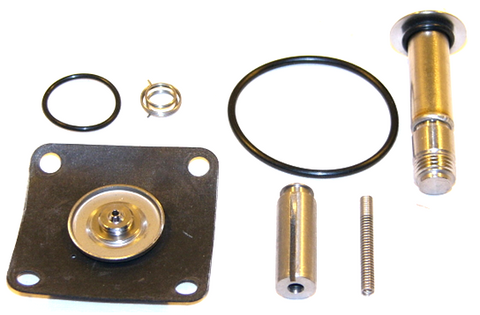

The GC Valves KS201AF02N5EG5 Repair Kit is a comprehensive rebuild solution specifically engineered for S201 series AC solenoid valves ending in the N5EG5 configuration. Designed for 3/4-inch normally closed valves, this kit addresses common field issues such as solenoid valve leaking and sluggish operation. Replacing internal components with these high-grade parts restores the zero differential performance and positive shut-off required in critical HVACR system maintenance. The kit includes a precision-matched diaphragm assembly, plunger assembly, plunger tube, and all necessary elastomers including the body O-ring and operator O-ring. By utilizing a solenoid rebuild kit rather than a full body replacement, technicians can maintain system integrity while minimizing downtime. This GC Valves repair kit is compatible with media including air, gas, and liquids, provided they are non-corrosive to the 120V AC-rated internal components. Proper alignment of the spring-loaded plunger and diaphragm during installation ensures the MOPD ratings of your fluid control system are fully restored.

Key Benefits:

• Full Internal Restoration: Includes the diaphragm assembly and plunger assembly to eliminate internal bypass and external leaks.
• Optimized Compatibility: Specifically designed for GC Valves S201 series, ensuring exact fitment for 3/4" NPT pilot-operated models.
• High Durability Components: Features a rugged plunger tube and spring set to withstand high cycling and maintain consistent flow control.
• Operational Efficiency: Restores the valve’s normally closed functionality, preventing unintended media flow during power loss.
• Simplified Maintenance: Facilitates an in-line rebuild without disconnecting the valve body from the piping system.

Common Questions:

How do I know if I need a repair kit or a full valve replacement?
If the valve body is free of cracks and the seat is not scored, a rebuild kit like the KS201AF02N5EG5 is the standard solution for fixing leaks, buzzing, or failure to open due to worn elastomers or a bent plunger tube.

Is this kit compatible with DC-powered S201 valves?
No, the KS201AF02N5EG5 is specifically calibrated for AC-powered operators. Using AC internal components in a DC circuit can lead to plunger travel issues and potential coil overheating due to different spring tensions.

Can this repair kit be used for steam applications?
Compatibility depends on the elastomer material. This kit is standard for air and water; for high-temperature steam, verify that your specific N5EG5 model uses the required EPDM or PTFE seals before installation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
