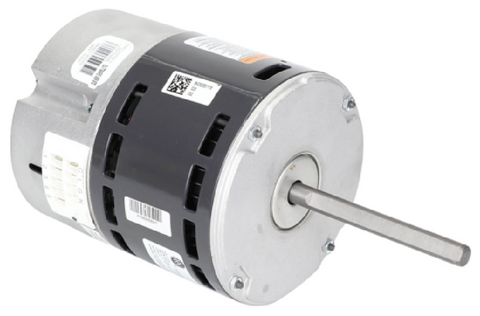

Lennox 23V89 Motor

The Lennox 23V89 Motor Replacement Kit, part number 607421-31, is a pre-programmed ECM constant-torque blower motor designed for compatible Lennox furnace and HVAC blower applications. The motor is rated at 1/2 HP, 115 VAC, single phase, 60 Hz, with five speeds and an operating range of approximately 550–1300 RPM.

The programmed ECM design provides the operating characteristics required for specific Lennox equipment applications. This motor uses a 48 frame, horizontal mounting position with belly-band mounting, ball bearings, and CCWLE rotation. The shaft measures approximately 1/2 inch x 4.5 inches.

Because the 607421-31 is a programmed motor, contractors should verify the complete furnace model and serial number before replacement rather than matching horsepower and voltage alone. Confirm the original motor number, programming, mounting configuration, rotation, shaft dimensions, electrical requirements, and blower application before installation.

Key Benefits

• Manufacturer: Lennox
• Catalog Number: 23V89
• Part Number: 607421-31
• Product Type: Blower Motor Replacement Kit
• Motor Type: Pre-Programmed ECM Constant Torque
• Horsepower: 1/2 HP
• Voltage: 115 VAC
• Phase: Single Phase
• Frequency: 60 Hz
• Speeds: 5
• RPM Range: 550–1300 RPM
• Frame Size: 48
• Rotation: CCWLE
• Mounting: Horizontal, Belly Band
• Shaft Size: 1/2 x 4.5 inches
• Bearing Type: Ball Bearing

Common Questions

What is the Lennox 23V89 / 607421-31?
It is a 1/2 HP pre-programmed ECM constant-torque blower motor replacement kit for specific Lennox HVAC equipment.

What voltage does the Lennox 607421-31 use?
It is rated for 115 VAC, single-phase, 60 Hz operation.

What is the speed range?
The motor has five speeds with an operating range of approximately 550–1300 RPM.

What direction does the motor rotate?
The motor is specified for CCWLE (counterclockwise lead-end) rotation.

Can I replace it with any 1/2 HP 115V ECM motor?
No. This is a programmed ECM motor, so horsepower and voltage alone are not enough to determine compatibility. The programming, frame, mounting, rotation, shaft dimensions, and electrical specifications must match the equipment.

How do I confirm compatibility?
Verify the complete Lennox equipment model and serial number against the applicable factory parts information before ordering.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.

23V89 is the cross for 17G96
