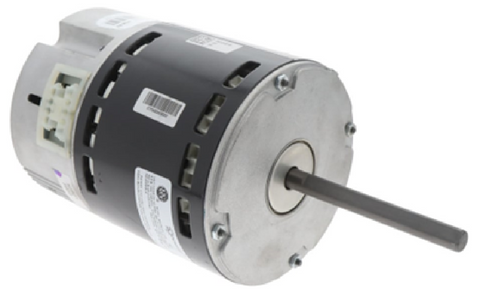

Lennox 25F05 Blower Motor and Module

The Lennox 25F05 Blower Motor and Module is a critical OEM replacement part designed for high-efficiency air handlers and furnaces. This integrated assembly features a brushless DC ECM motor paired with a pre-programmed variable speed control module, ensuring precise airflow regulation across various static pressures. As a direct-fit component, the Lennox 25F05 maintains factory-spec communication with the system’s main control board, facilitating optimal ramp-up profiles and dehumidification cycles. When diagnosing a blower motor not spinning or intermittent "no-start" sequences in Lennox residential units, this complete blower motor and module assembly eliminates the compatibility risks associated with universal aftermarket alternatives. Built for continuous-duty operation, it provides the torque and RPM modulation required for variable airflow HVAC systems. Replacing the entire assembly ensures the ECM motor controller is perfectly calibrated to the motor’s internal windings, preventing the common communication faults found when replacing modules and motors separately in the field.

Key Benefits

• Direct OEM replacement ensures seamless pin-to-pin electrical compatibility with existing Lennox wire harnesses.
• Integrated ECM technology provides variable speed airflow for improved energy efficiency and static pressure compensation.
• Single-unit assembly reduces diagnostic time by replacing both the high-failure electronic module and the motor simultaneously.
• Precision-balanced rotor minimizes vibration and mechanical wear on the blower wheel and motor mounts.
• High-torque performance handles complex ductwork configurations while maintaining consistent CFM delivery.

Common Questions

How do I identify if the 25F05 module or the motor itself has failed?
Most field technicians use an ECM tester to check for proper 24V and PWM signals from the board. If the signals are present but the motor fails to rotate or "rocks" back and forth, the internal module or windings are typically defective.

Can I install a 25F05 in a non-Lennox application?
No. While the motor frame may fit, the Lennox 25F05 features proprietary OEM programming specific to Lennox control logic. Using this in other brands will result in communication errors.

Does this assembly require programming in the field?
This blower motor and module comes pre-programmed with the necessary torque and airflow parameters, meaning it is ready for "plug and play" installation once mounted to the blower housing.
