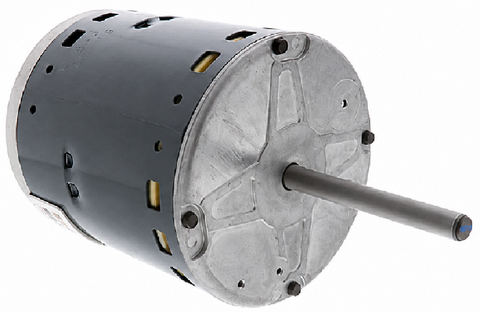

Lennox 87W50 Motor

The Lennox 87W50 Motor is a high-efficiency 3/4 HP 208-230V programmable blower motor designed specifically for precision air delivery in residential and light commercial HVAC systems. This OEM Lennox replacement motor utilizes advanced constant-torque or constant-airflow logic to maintain optimal static pressure performance across varying ductwork conditions. As a programmed blower motor, it arrives factory-calibrated with specific performance parameters for compatible Lennox air handlers and furnaces, ensuring seamless integration with the existing system control board. For HVAC technicians, this 87W50 blower motor eliminates the need for manual speed tapping, as the integrated motor control module manages ramp-up profiles and operating speeds based on real-time feedback from the 16-pin or 5-pin communication harnesses. Replacing a failed Lennox indoor blower motor with this genuine component restores factory-standard airflow, improves seasonal efficiency ratings, and prevents common issues like evaporator coil freezing or excessive heat exchanger cycling. Always verify that the existing unit’s configuration ID matches the firmware requirements of the 87W50 to ensure full functionality of the variable speed features.

Key Benefits for Technicians

• Factory Programmed: Pre-loaded with Lennox-specific performance curves for immediate "plug-and-play" installation.
• Enhanced Efficiency: Operates as a high-efficiency variable speed motor, significantly reducing energy consumption compared to standard PSC motors.
• Quiet Operation: Controlled ramp-up and ramp-down cycles minimize audible "banging" or duct vibration during start-stop sequences.
• OEM Reliability: Built to original specifications for exact physical fitment, including shaft diameter and mounting bolt patterns.

Common Questions for 87W50 Is the motor control module included with the 87W50? Yes, the Lennox 87W50 is typically supplied as a complete assembly including the pre-programmed control module and the motor section. Do I need to program the 87W50 in the field? No, this is a programmed blower motor. It is pre-configured at the factory for specific Lennox equipment profiles. However, technicians should ensure the unit controller is updated to the latest firmware to support modern ECM communication. What is the primary cause of failure for these motors? Most ECM blower motor failures are attributed to high static pressure (undersized ductwork) or electrical surges. Checking the TESP (Total External Static Pressure) during installation is highly recommended to prevent premature module burnout.
