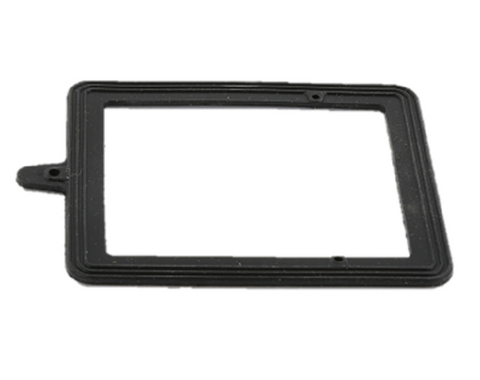

Lochinvar & A.O. Smith 100233609 Gasket

The Lochinvar & A. O. Smith 100233609 Gasket Flapper Valve is a critical OEM replacement component engineered for high-efficiency condensing boilers and commercial water heaters, including the Lochinvar Armor X2 and Shield SN126-401 series. As a veteran-grade HVAC flapper valve, this part serves as a directional check mechanism within the combustion or venting assembly, preventing hazardous exhaust gas backflow and maintaining proper pressurized seal integrity. Constructed from durable, heat-resistant elastomers, the 100233609 gasket ensures a watertight seal and airtight closure during the modulation cycles of high-recovery systems. For contractors performing Lochinvar boiler maintenance or A. O. Smith water heater repair, replacing a fatigued flapper is essential to prevent internal leakage and maintain peak thermal efficiency. This genuine OEM boiler part is designed to withstand the corrosive condensate and thermal cycling common in condensing water heater applications, providing a precise fit that generic alternatives cannot match in demanding mechanical rooms.

• System Safety: Prevents the reversal of combustion air and flue gases, protecting the blower and heat exchanger components.
• Direct OEM Compatibility: Engineered specifically for Lochinvar Armor X2 and A. O. Smith Shield condensing units to ensure zero-clearance sealing.
• Durable Elastomeric Construction: Resists degradation from constant exposure to heat and acidic condensate common in high-efficiency venting.
• Pressure Regulation: Maintains the necessary internal pressure differentials for consistent burner performance and ignition reliability.

What are the signs of a failing flapper valve in a condensing boiler?
Technicians often observe erratic burner behavior, "flame out" errors, or physical signs of backflow in the air intake. A warped or stiffened gasket prevents the flapper from seating correctly, disrupting the intake-to-exhaust pressure balance.

Is this gasket compatible with all Lochinvar Armor models?
While the 100233609 is a standard across the Armor X2 and Shield commercial lines, always verify your specific model and serial number, as flapper dimensions can vary between residential and high-BTU commercial chassis.

Can I use a generic gasket for this flapper assembly?
Non-OEM gaskets often lack the thermal rating or specific durometer required for high-efficiency condensing heat exchangers, which can lead to premature failure or unsafe operating conditions. Using genuine 100233609 ensures the HVAC system efficiency meets the original manufacturer's specifications.
