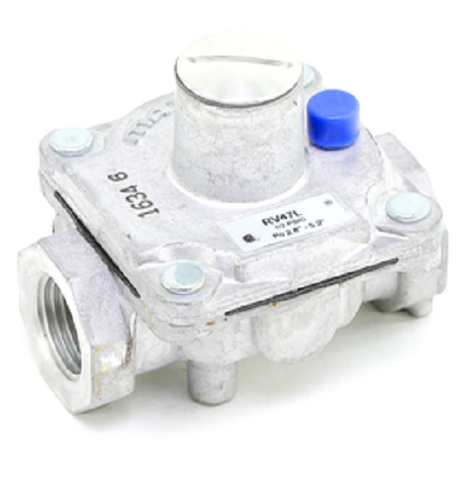

Maxitrol RV47L-1/2 Regulator

Maxitrol RV47L-1/2 Regulator

1/2" NPT, 1/2 PSI Max Inlet Pressure, 2.8-5.2"wc Outlet Pressure, Rubber Seat Poppet Model Appliance Gas Regulator with Integral Vent Limiting Orifice

Maxitrol RV47L-1/2 Regulator – 1/2" NPT, Appliance Gas Regulator with Integral Vent Limiting Orifice

The Maxitrol RV47L-1/2 Regulator is a high-quality appliance gas regulator designed for precise gas flow control in residential and commercial applications. Featuring a 1/2" NPT connection and a 1/2 PSI max inlet pressure, this regulator ensures reliable performance, maintaining a steady 2.8-5.2" wc outlet pressure for consistent gas delivery.

Key Features:

  • Model/Part Number: RV47L-1/2

  • Connection Size: 1/2" NPT for secure and easy installation

  • Inlet Pressure: 1/2 PSI max for optimal gas flow regulation

  • Outlet Pressure: Adjustable between 2.8-5.2" wc for precise pressure control

  • Seat Type: Rubber seat poppet for reliable sealing and performance

  • Vent Limiting: Integral vent limiting orifice to improve safety and efficiency

  • Application: Ideal for appliances requiring consistent gas regulation

  • Durable Design: Built for long-lasting use in various gas applications

Applications: The Maxitrol RV47L-1/2 Regulator is ideal for use in gas appliances that require stable, efficient pressure regulation, including heating systems, water heaters, and other gas-powered devices. It’s perfect for applications where precise gas flow and pressure control are essential for safety and performance.

QUESTIONS & ANSWERS

Ask a Question

  • Do I need to adjust it to 4”? I want to replace three Global Model# 7010-5000 1/2 PSIG PO 4” BTU 20,000 to 45,000 BBQ, Grill and Griddle. Charbroil from Lowes. I only want Regulator not kit with hoses etc.

    Yes, it would have to be adjusted to 4”WC.

  • Will this regulator replace rv47lf 1/2

    RV47L-1/2 is adjustable while RV47LF-1/2 (we don't carry this one) has fixed outlet pressure. RV47L-1/2 is still on back order and we don't know when it will be available due to parts shortage.

  • Will this fit my bill Brahma natural gas model no. 1569X 90,000 btu. ? Original part currently on is RV47L 1/2 psig.

    Please reply us the outlet pressure is needed to check.

  • I'm curious as to why the inlet AND outlet size are smaller than the original regulator. I'll have to get TWO (2) different fittings to make it work on the stove in my mobile...LP gas...and not Natural gas..

    We are not sure why but below is the documentation we have on this valve.

    Tech Sheet

  • What is the BTU rating

    125,000

  • If converting from natural to lp what all needs changed

    It is different for different unit, please consult with the unit manufacturer or a contractor on what else need to be changed.

  • Inlet side is 1/2" but the outlet side is 3/8". Is this correct? This regulator is on my Weber Summit Silver series B.

    This one is 1/2" both inlet and outlet.

  • dose this work with propane? i need one that came out of a water heater. Thank you

    Without any notation, these have a standard outlet spring range of 2.8-5.2”WC. LP usually is around 10 or 11”WC. I’ll quote you one with a -412 which has an adjustable 4-12 “WC range.

    Part numbers: RV47L-1/2-412, please check if this is working for you.

  • I have a maxitrol regulator RV20LF in my hand and need a replacement. 1/2 Paige and 9.5u201d water column for a propane stove. Please let me know what to order?

    We are not able to cross anything based on the information you provided. We could try checking with the factory if you can provide us the unit model and serial numbers of the unit this regulator is installed on. Thank you.
